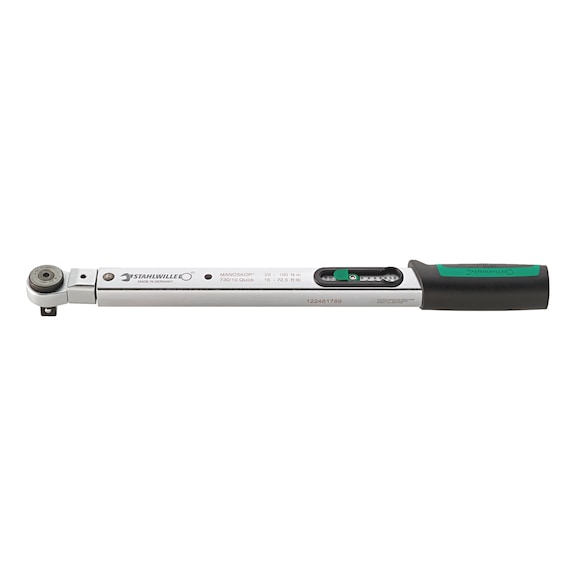

Torque wrench for plug-in head Stahlwille MANOSKOP® 730R Quick
For detailed information, other images and documents, please select individual articles from the following table.
Torque wrench for plug-in head Stahlwille MANOSKOP® 730R Quick
Triggered with double stop signal
Exclusively for trade customers
Register now and access more than 125,000 products
Variants
Exclusively for trade customers
Register now and access more than 125,000 products
- Does not need to be reset to "0" as the measuring element is only loaded when tightening
- Drive for interchangeable plug-in torque wrench heads
- With QuickRelease safety lock
- Rapid adjustment using the convenient clamping lever in the handle
- Non-slip adjustment mechanism with thumb recess for quick torque adjustment
- Double scale: Nm/ft·lb or Nm/in·lb
- Also available as Nm version without double scale on request
- Anti-clockwise tightening by turning over the plug-in torque wrench head
- Trigger mechanism insensitive to continuous and counter loads (up to the max. measuring range of the torque wrench)
- Optimal calibration with the perfectControl® calibration system no. 7794 or calibration systems no. 7706, 7791
- Easy adjustment from the outside via two adjusting screws without the need for disassembly
- With 2-component handle
- Calibration certificate in accordance with DIN EN ISO 6789-2:2017
- Display deviation value ± 4 %
