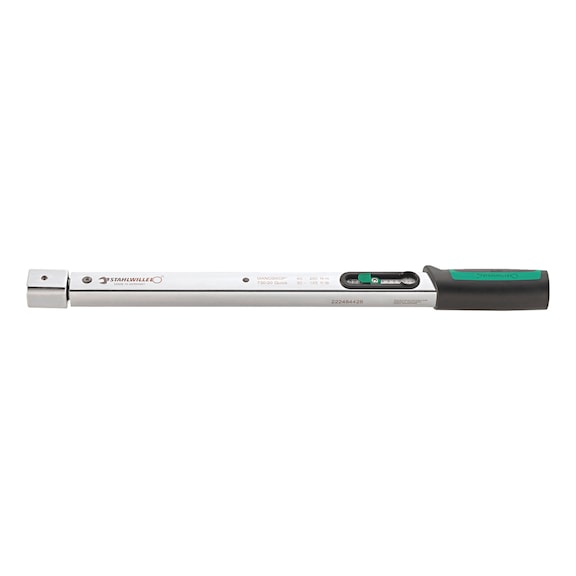

Torque wrench for plug-in torque wrench head Stahlwille MANOSKOP® 730 Quick
For detailed information, other images and documents, please select individual articles from the following table.
Torque wrench for plug-in torque wrench head Stahlwille MANOSKOP® 730 Quick
Rapid adjustment using the convenient clamping lever in the handle.
Exclusively for trade customers
Register now and access more than 125,000 products
Variants
Exclusively for trade customers
Register now and access more than 125,000 products
- Triggering
- Does not need to be reset to "0" as the measuring element is only loaded when tightening
- Mount for interchangeable socket tools
- QuickRelease safety lock (size 5-65)
- Ergonomically shaped, non-slip adjustment mechanism with thumb recess
- Optimised ball handle for fatigue-free working
- Double stop signal
- Double scale: Nm/ft-lb or Nm/in-lb (size 5-80)
- Also available as Nm version without double scale on request (size 5-65)
- Anti-clockwise tightening by turning the socket tools around
- Further load after triggering or impact against the direction of operation, e.g. in the case of seized screws, does not affect the trigger mechanism, thereby protecting it from damage
- Calibration using perfectControl® calibrating unit no. 7794 or calibration system no. 7706. Can be readjusted as required without dismantling
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Display deviation value ± 4 %
