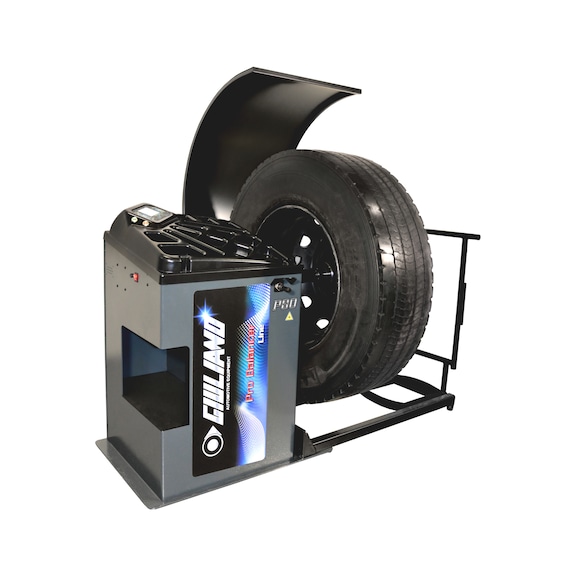

Professional 2D electronic balancing machine with touchscreen
WHLBALNR-P80
Art.-no. 9501023180
EAN 4068362206900
Register now and access more than 125,000 products
- Designed for truck and bus wheels
- Automatic wheel diameter and spacing measurement
- Touchscreen operation with colour video display
- Automatic start/stop function
- Built-in tool storage
- Laser positioning line and pneumatic wheel lift
- Self-diagnosis and calibration function
- ALU programs
- Weight distribution behind the wheel spokes (FES function)
Datasheets(X)
Product weight (per item) | 215.000 kg |
Max. rim width | 20 in |
Min./max. rim diameter | 10-30 in |
Wheel guard | Yes |
Clamping device | Mechanical |
Nominal voltage | 230 V |
Type of vehicle | Truck |
Width | 1100 mm |
Length | 1630 mm |
Wheel lift | Yes |
Drive for balance unit | Motor |
Automatically applies rim data | Distance and diameter |
