Profile system

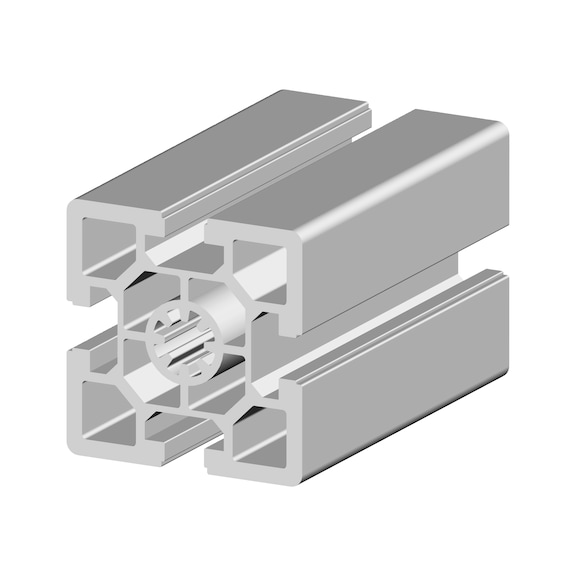

Profile system WAPS series, B
PRFLSYS-SB-ALU-ELO-FL10-60X60X6060

Art.-no. 4952020035
EAN 4056807134154

Prices for customers after login
Profile system

Art.-no. 4952020035

Prices for customers after login
Quantity
PU
x 10 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

WAPS® Series B compatible with Bosch

WAPS® The Würth aluminium profile system


The Würth aluminium profile system (abbreviated: WAPS®) offers a wide range of different profile versions. All profiles are anodised and feature coordinated series-specific grid dimensions for perfect combination with each other. There is no sector in which the Würth aluminium profile system cannot be used.



Advantages of WAPS®


  • Compatible with Bosch (SB) with the grooves 6, 8 and 10

  • Over 150 profile variations

  • Wide range of grid sizes from 20 to 60 mm

  • Available lengths (depending on profile): 2000, 3000 or 6000 mm

  • Practical packaging units

  • Compatible with CLIP-O-FLEX® – the flexible suspension system
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Profile width

60 mm

Profile height

60 mm

Groove width

10 mm

Length

6060 mm

Material

Aluminium

Surface

Anodised

Min. coating thickness

10 µm

Max. coating thickness

15 µm

Profile surface

14.31 cm²

Core hole diameter

10 mm

Min. tensile strength Rm

245 N/mm²

Min. elasticity limit (Rp 0.2 value)

195 N/mm²

Brinell hardness, HB

75 HB

Longitudinal moment of inertia

52.69 cm⁴

Transverse moment of inertia

52.69 cm⁴

Section modulus Y-axis

17.56 cm³

Section modulus X-axis

17.56 cm³

Breaking elongation A5

10 %

Breaking elongation A10

8 %

Elasticity modulus at 100%

70000 N/mm²
