Profile system WAPS series, B

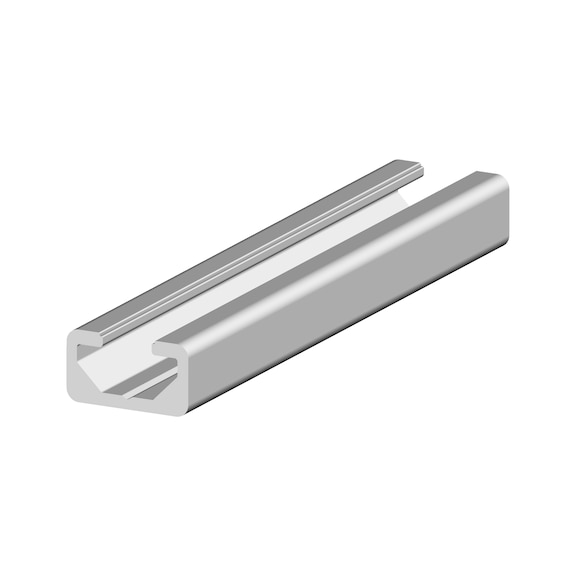

PRFLSYS-SB-ALU-ELO-FL8-11X20X2060
Register now and access more than 125,000 products
WAPS® The Würth aluminium profile system
The Würth aluminium profile system (abbreviated: WAPS®) offers a wide range of different profile versions. All profiles are anodised and feature coordinated series-specific grid dimensions for perfect combination with each other. There is no sector in which the Würth aluminium profile system cannot be used.
Advantages of WAPS®
- Compatible with Bosch (SB) with the grooves 6, 8 and 10
- Over 150 profile variations
- Wide range of grid sizes from 20 to 60 mm
- Available lengths (depending on profile): 2000, 3000 or 6000 mm
- Practical packaging units
- Compatible with CLIP-O-FLEX® – the flexible suspension system
Datasheets(X)
 | |
Profile width | 11 mm |
Profile height | 20 mm |
Groove width | 8 mm |
Length | 2060 mm |
Material | Aluminium |
Surface | Anodised |
Min. coating thickness | 10 µm |
Max. coating thickness | 15 µm |
Profile surface | 1.02 cm² |
Core hole diameter | 7.3 mm |
Min. tensile strength Rm | 245 N/mm² |
Min. elasticity limit (Rp 0.2 value) | 195 N/mm² |
Brinell hardness, HB | 75 HB |
Longitudinal moment of inertia | 0.13 cm⁴ |
Transverse moment of inertia | 0.52 cm⁴ |
Section modulus Y-axis | 0.20 cm³ |
Section modulus X-axis | 0.52 cm³ |
Breaking elongation A5 | 10 % |
Breaking elongation A10 | 8 % |
Elasticity modulus at 100% | 70000 N/mm² |
