Profile system

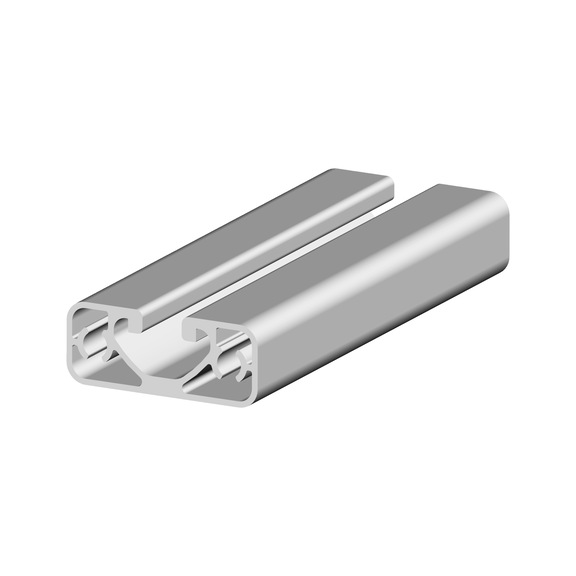

Profile system WAPS series, I
PRFLSYS-SI-ALU-ELO-FL8-L-16X40X3060

Art.-no. 4952120033
EAN 4056807133379

Prices for customers after login
Profile system

Art.-no. 4952120033

Prices for customers after login
Quantity
PU
x 5 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

WAPS® Series I compatible with Item

WAPS® The Würth aluminium profile system


The Würth aluminium profile system (abbreviated: WAPS®) offers a wide range of different profile versions. All profiles are anodised and feature coordinated series-specific grid dimensions for perfect combination with each other. There is no sector in which the Würth aluminium profile system cannot be used.



Advantages of WAPS®


  • Compatible with Item (SI) with the grooves 5, 6 and 8

  • Over 150 profile variations

  • Wide range of grid sizes from 20 to 60 mm

  • Available lengths (depending on profile): 2000, 3000 or 6000 mm

  • Practical packaging units

  • Compatible with CLIP-O-FLEX® – the flexible suspension system
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Profile width

16 mm

Profile height

40 mm

Groove width

8 mm

Length

3060 mm

Material

Aluminium

Surface

Anodised

Min. coating thickness

10 µm

Max. coating thickness

15 µm

Profile surface

2.45 cm²

Core hole diameter

6.8 mm

Min. tensile strength Rm

245 N/mm²

Min. elasticity limit (Rp 0.2 value)

195 N/mm²

Brinell hardness, HB

75 HB

Longitudinal moment of inertia

0.69 cm⁴

Transverse moment of inertia

3.71 cm⁴

Section modulus Y-axis

0.84 cm³

Section modulus X-axis

1.86 cm³

Breaking elongation A5

10 %

Breaking elongation A10

8 %

Elasticity modulus at 100%

70000 N/mm²

Design of the aluminium profile

Lightweight design
