Push-in Y-connector with plug-in nipple reducing
Push-in Y-connector plug nipple blue series red.
PLGCON-Y-REDUC-NPL-8MM-PLA-PIP-6
Art.-no. 4981124502
EAN 4099618903465
Register now and access more than 125,000 products
Datasheets(X)
 | |
Material | Plastic |

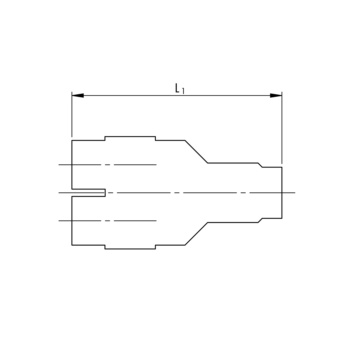

Length (l1) | 54.0 mm |
Min./max. temperature conditions | -20 to 80 °C |
Min./max. pressure | -0.95-10 bar |
Material of gasket | Nitrile butadiene rubber (NBR) |
Diameter | 3.2 mm |
Suitable for hose external diameter | 6 mm |
Material of housing | Brass |
Surface of the housing | Nickel plated |
