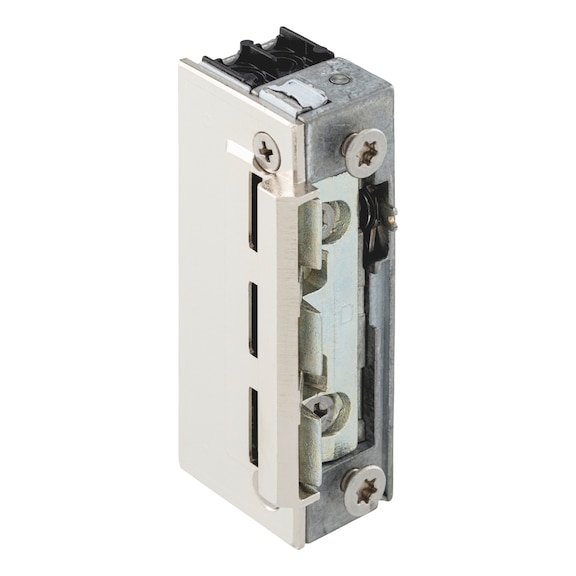

RFR electric strike, type 4

Electric strike type 4 RFR
DROPN-EL-TYP4-RFR-MUL

Art.-no. 0688505760
EAN 4065746471886
All versions

Prices for customers after login
RFR electric strike, type 4

Art.-no. 0688505760

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

The integrated latch slide means that no recess is required in the door frame
  • Symmetrical housing

  • Adjustable electric strike latch

  • Latch slide: The latch slide ensures optimal guidance of the safety catch. In addition, there are no messy recesses in the door frame for the electric strike latch, creating an uninterrupted frame profile and a continuous sealing surface

  • Daytime unlocking: The electric strike function can be switched off with the small release lever, meaning that the door is freely passable without contact from the electric strike

  • Suitable for 13 mm axis diameter
Notice

Cannot be used on fire and smoke protection doors.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for

Metal doors, Plastic doors, Wooden doors, Closing bar

Fire protection certified

No

With unlocking mechanism

Yes

With locking mechanism

No

DIN direction

DIN R/L

Material

Steel / Die-cast zinc

Material of catch bolt

Die-cast zinc

Surface

Zinc plated

Min./max. nominal voltage

0 / 0 V/DC

Min./max. nominal current

0-0 mA

Electrical resistance

0 Ohm

Height

66 mm

Width

28.45 mm

Thickness

21.75 mm

Power supply Coil resistance Current consumption
in VAC 		Current consumption
in VDC 		Max. latch preload (N) 100 %
continuous current-proof VDC
Ω V mA V mA VDAC N VAC N
10-24 V (AC/DC) 43 10 175 10 230 10 35 10 200 11-13
12 250 12 280 12 55 12 250
24 300 24 560 24 220 24 360
