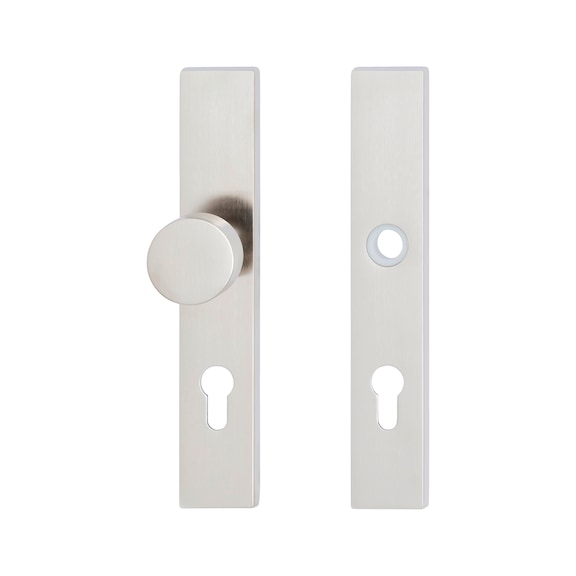

Replacement fittings ZD square

Rmv fttng sq clip lg pl, no Handle hole
DH-ZD-CH-LONGPLT-L/R-(NI)-MATT

Art.-no. 0687170093
EAN 4050641868664
All versions

Prices for customers after login
Replacement fittings ZD square

Art.-no. 0687170093

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Concealed mounting
Notice

Supplied without handle hole.

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Fitting version

0 - not applicable

Distance (from handle to lock)

72 mm

Punched-hole

PC

Suitable for

Apartment entrance doors

Fire protection certified

No

Shape of door handle

0 - not applicable

Bearing Technology

With plastic bearing

Material of handle/ cover rosette or shield

Die-cast zinc

Gloss level

Matt

Surface

Nickel plated

Colour

0 - not applicable

Colour of handle

0 - not applicable

Suitable for min./max. door thickness (TS)

38-42 mm

DIN direction

DIN R/L

Utilisation category

0 - not applicable

Environmental Product Declaration

No

Type of assembly

Screw-on

Square size

0 - not applicable

Spindle

0 - not applicable

Door handle mount diameter

15.8 mm

Knob/handle plate/loop handle

Solid

Knob diameter

45 mm

Rosette/ shield shape

Long plate square

Hole distance

190 mm

Door-plate width

42 mm

Door-plate length

234 mm

Label thickness

6.5 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
ZD 2 handle hole
ZD 2 handle hole

SDF-ZD2-DH-(NI)-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
ZD 3 handle hole
ZD 3 handle hole

SDF-ZD3-DH-(NI)-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
ZD 4 handle hole
ZD 4 handle hole

SDF-ZD4-DH-(NI)-BLACK-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
ZD 5 handle hole
ZD 5 handle hole

SDF-ZD5-DH-(NI)-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
ZD 9 door handle hole
ZD 9 door handle hole

SDF-ZD-DH-(NI)/(CR)-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
ZD 7 handle hole
ZD 7 handle hole

SDF-ZD7-DH-(NI)-MATT

Can be used on replacement fittings made from die-cast zinc or on stronger doors
