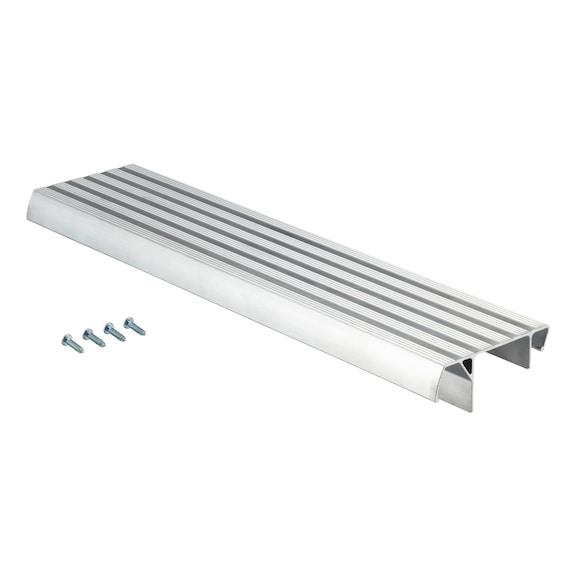

Retrofit step For wooden runged stepladders/hybrid ladders

Retrofit step for wooden step and hybrid ladder
RETFITSTEP-F.STEPLDR

Art.-no. 0962930941
EAN 4062856450077
All versions

Prices for customers after login
Retrofit step For wooden runged stepladders/hybrid ladders

Art.-no. 0962930941

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Comfortable and safe standing position according to TRBS 2121 Part 2. With tested slip resistance
  • 80 mm deep steps with grooved surface, slip resistance class R12 according to DIN 51130

  • Precision-fit, positive-locking clamp, screw connection, simply attach and tighten

  • May remain on the ladder during transport

  • Curved front surface, for pain-free leg support from the retrofit step above

  • Low weight
Notice

Rungs 1 and 2 must not be climbed. That's why the basic set is specifically designed to the width of the 3rd and 4th rungs. With the 2-part and 3-part extension sets, additional rungs from rung 5 downwards can be retrofitted if necessary.

Application area
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Material

Aluminium

Surface

Plain

Width

380 mm

Depth

80 mm

Stand area according to TRBS 2121-2

Yes

Max. loading weight

150 kg

Suitable for hybrid ladders
Art. no. Designation Scope of delivery Width
in
mm 		2 x 7 2 x 8 2 x 9 2 x 10
0962 934 507 0962 934 508 0962 934 509 0962 934 510
0962 934 607 0962 934 608 0962 934 609 0962 934 610
2 x 5* 2 x 6* 2 x 7* 2 x 8*
0962 930 950 Basic set H2 2 retrofit steps (for rungs 3 and 4 from above) 360/390 x x x x
0962 930 952 Extension set H2 2 retrofit steps (from rung 5 downwards) 390 x x x x
0962 930 953 Extension set H3 3 retrofit steps (from rung 5 downwards) 390 x x x x
Suitable for wooden runged stepladders, version from Sept. 2020
Art. no. Designation Scope of delivery Width
in
mm 		2 x 4 2 x 5 2 x 6
0962 932 704 0962 932 705 0962 932 706
2 x 2* 2 x 3* 2 x 4*
0962 930 950 Basic set H2 2 retrofit steps (for rungs 3 and 4 from above) 360/390 x x x
0962 930 952 Extension set H2 2 retrofit steps (from rung 5 downwards) 390 - x x
Suitable for wooden wide-rung stepladders
Art. no. Designation Scope of delivery Width
in
mm 		2 x 7 2 x 8 2 x 10
962 932 407 096 932 408 962 932 410
2 x 5* 2 x 6* 2 x 8*
0962 930 941 Basic set E2 2 retrofit steps (for rungs 3 and 4 from above) 380 x x x
0962 930 942 Extension set D2/E2 2 retrofit steps (from rung 5 downwards) 410 x x x
0962 930 943 Extension set D3/E3 3 retrofit steps (from rung 5 downwards) 410 x x x
Suitable for hybrid ladders
Art. no. Designation Scope of delivery Width
in
mm 		2 x 4 2 x 5 2 x 6
0962 934 504 0962 934 505 0962 934 506
0962 934 604 0962 934 605 0962 934 606
2 x 2* 2 x 3* 2 x 4*
0962 930 950 Basic set H2 2 retrofit steps (for rungs 3 and 4 from above) 360/390 x x x
0962 930 952 Extension set H2 2 retrofit steps (from rung 5 downwards) 390 - x x
Suitable for wooden runged stepladders, version from Sept. 2020
Art. no. Designation Scope of delivery Width
in
mm 		2 x 7 2 x 8 2 x 9 2 x 10
0962 932 707 0962 932 708 0962 932 709 0962 932 710
2 x 5* 2 x 6* 2 x 7* 2 x 8*
0962 930 950 Basic set H2 2 retrofit steps (for rungs 3 and 4 from above) 360/390 x x x x
0962 930 952 Extension set H2 2 retrofit steps (from rung 5 downwards) 390 x x x x
0962 930 953 Extension set H3 3 retrofit steps (from rung 5 downwards) 390 x x x x
Suitable for wooden runged stepladders, version up to Aug. 2020
Art. no. Designation Scope of delivery Width
in
mm 		2 x 4 2 x 5 2 x 6
962 932 104 962 932 105 962 932 106
2 x 2* 2 x 3* 2 x 4*
0962 930 940 Basic set D2 2 retrofit steps (for rungs 3 and 4 from above) 380/410 x x x
0962 930 942 Extension set D2/E2 2 retrofit steps (from rung 5 downwards) 410 - x x
* number of weight-bearing rungs (rungs 1 and 2 - from above - must not be climbed)
Suitable for wooden wide-rung stepladders
Art. no. Designation Scope of delivery Width
in
mm 		2 x 4 2 x 5 2 x 6
962 932 404 962 932 405 962 932 406
2 x 2* 2 x 3* 2 x 4*
0962 930 941 Basic set E2 2 retrofit steps (for rungs 3 and 4 from above) 380 x x x
0962 930 942 Extension set D2/E2 2 retrofit steps (from rung 5 downwards) 410 - x x
Suitable for wooden runged stepladders, version up to Aug. 2020
Art. no. Designation Scope of delivery Width
in
mm 		2 x 7 2 x 9 2 x 10 2 x 14
962 932 107 962 932 109 962 932 110 962 932 114
2 x 5* 2 x 7* 2 x 8* 2 x 12*
0962 930 940 Basic set D2 2 retrofit steps (for rungs 3 and 4 from above) 380/410 x x x x
0962 930 942 Extension set D2/E2 2 retrofit steps (from rung 5 downwards) 410 x x x x
0962 930 943 Extension set D3/E3 3 retrofit steps (from rung 5 downwards) 410 x x x x
* number of weight-bearing rungs (rungs 1 and 2 - from above - must not be climbed)
