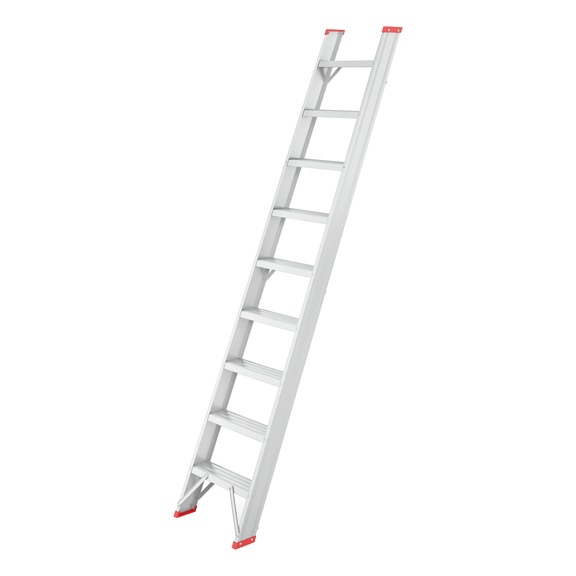

Riveted aluminium single ladder with steps - LANDLDR-ALU-9STEP Riveted aluminium single ladder with steps - LANDLDR-ALU-9STEP
Riveted aluminium single ladder with steps - LANDLDR-ALU-9STEP - 1
Riveted aluminium single ladder with steps - LANDLDR-ALU-9STEP - 2

Riveted aluminium single ladder with steps

Single ladder with steps
LANDLDR-ALU-9STEP

Art.-no. 0962930409
EAN 4062856031672
All versions

Prices for customers after login
Riveted aluminium single ladder with steps

Art.-no. 0962930409

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Riveted design
  • 85 mm deep steps with a serrated surface ensure highly secure, safe and comfortable positioning

  • Strut/rung connection with special rivets and additional stiffening struts at the top and bottom of the ladder ensure a high level of robustness and good torsion resistance

  • Very good bending resistance as steps and strut are made of extruded aluminium profiles
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Material

Aluminium

Surface

Plain

Number of steps

1 x 9

Length

2.25 m

Width

0.44 m

Rail dimensions

84.6 mm x 20.2 mm

Step distance

230 mm

Step depth

85 mm

Stand area according to TRBS 2121-2

Yes

Dock height (at 67° tilting)

2.03 m

Load capacity

150 kg

Stand height

1.27 m

Working height

2.77 m

Reaching height

3.27 m

Standards

EN 131

Weight

6.4 kg
