Roller unit plastic R28 - ROLLUNT-PA-BLCK-TRAILRIM-D28-50X33MM

Roller unit plastic R28 - ROLLUNT-PA-BLCK-TRAILRIM-D28-50X33MM - 1

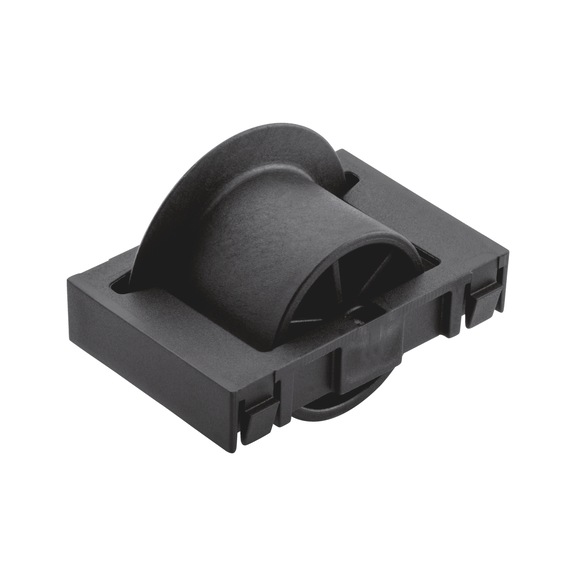

Roller unit plastic R28

Name: Roller unit plastic R28
Brand: Würth
SKU: 4952600133

Roller unit plastic R28
ROLLUNT-PA-BLCK-TRAILRIM-D28-50X33MM

Art.-no. 4952600133

EAN 4056807474656

All versions

Similar products

Individual price display after login

Roller unit plastic R28

Art.-no. 4952600133

Individual price display after login

Quantity

x 10 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Resilient and smooth R28 roller unit for aluminium roller track profiles, fully pre-assembled

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

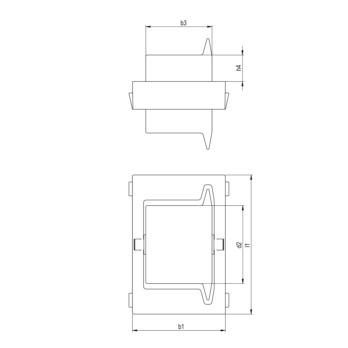

Profile type	I, B
Length (l₁)	50 mm
Width (b₁)	33.3 mm
Width of the tread (b₃)	24 mm
Height side support (h₃)	6 mm
Roll height (h4)	9.5 mm
Diameter (d₂)	28 mm
Material of housing	Polyamide/GFK
Material of roller	Polyamide, fibreglass-reinforced
Material of axle	Steel
Load capacity	15.29 kg
Surface of the axle	Zinc plated
Colour	Black
RoHS-compliant	Yes

Additional accessory:

Product

Description

Quantity

Price
/PU

Profile system

PRFLSYS-SB-ALU-ELO-FL10-ROP-40X40X6060

Art.-no. 4952030011

WAPS® series B compatible with Bosch

x 10 pcs

Profile system

PRFLSYS-SI-ALU-ELO-FL8-ROP-40X40X6060

Art.-no. 4952130006

WAPS® series I compatible with Item

x 10 pcs
