Round head screw with square neck DIN 603, polyamide 6.6, natural
DIN 603 polyamide 6.6 nature
SCR-MHD-DIN603-PA6.6-M12X70
Register now and access more than 125,000 products
The flat square neck fixes the round head screw e.g. in a slot and allows tightening from the nut side without counter-tensioning.
Datasheets(X)

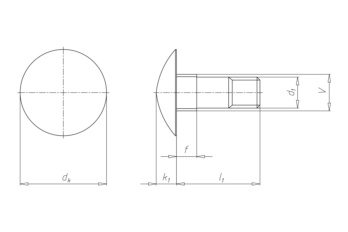

Thread type x nominal diameter (d1) | M12 |
Length (l1) | 70 mm |
Material | PA - Polyamide |
Surface | Plain |
Head diameter (dk) | 30.65 mm |
Head height (k1) | 6.95 mm |
Square width (V) | 12.7 mm |
Square height (f) | 8.75 mm |
Internal drive | 0 - not applicable |
Standards | DIN 603 |
RoHS-compliant | Yes |
Design | 0 - not applicable |
Head type | Cup head square neck |
Head details | With square neck |
Drive type | 0 - not applicable |
Thread type | Metric thread |
Pitch | 1.75 mm |
Thread form | Standard metric thread |
Thread length (metric thread) (b) | 30 mm |
Product class | C |
Area of application | 0 - not applicable |
Regulated area | 0 - not applicable |
