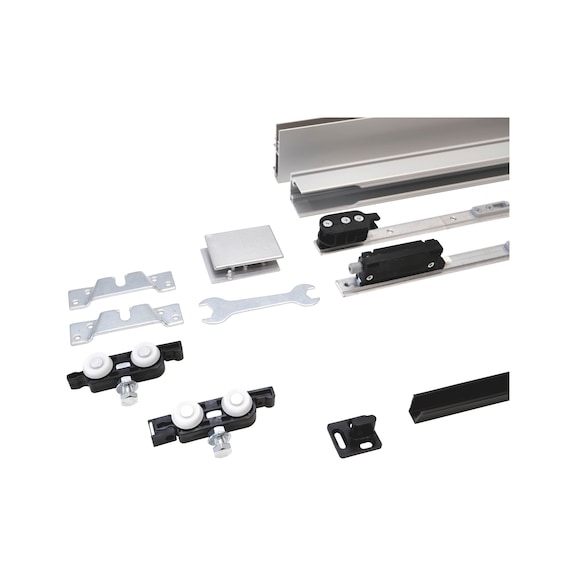

SCHIMOS 80-HS-DR, MB interior sliding door fitting set for ceiling mounting with wooden doors
Sliding door fitting set SCHIMOS 80-HS-DR, MB
SLIDDRFITT-SCHIMOS80HSDR-WCSI-SDT-2000
Register now and access more than 125,000 products
- Runner with inspection opening (notch) to enable fittings to be subsequently inserted or removed from the runner, e.g. when installing in a wall cavity
Datasheets(X)
 | |
Suitable for | Wooden doors |
Mounting option | Ceiling installation |
Load capacity | 80 kg |
Suitable for min./max. door thickness | 26-40 mm |
Suitable for min. door width | 690 mm |
Suitable for max. door width | 1485 mm |
Height adjustment | +/- 5 mm |
Damper | One-sided |
Fitting type | Tipmatic |
Material | Aluminium |
Surface | Anodised |
Colour | Silver coloured |
Design | Aluminium clip cover |
Rail length | 2000 mm |
Bearing Technology | Ball-bearing |
