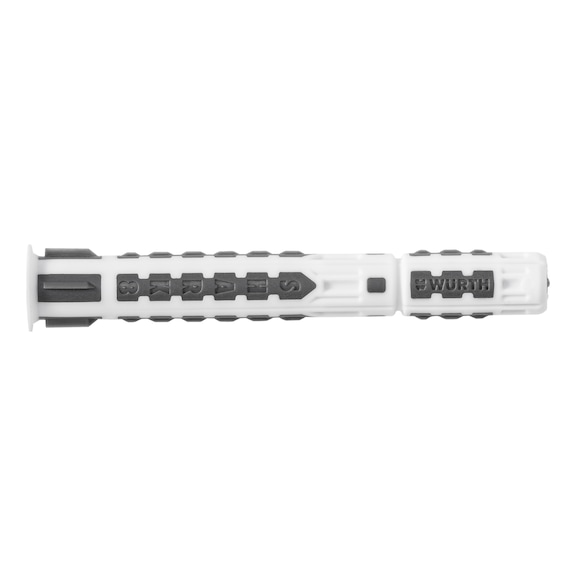

SHARK TWIST XL 2C multi-purpose fixing
DWL-PLA-SHARK-TWIST-XL-8X65
Art.-no. 590680865
EAN 4068362316357
Register now and access more than 125,000 products
- The multi-purpose fixing with large embedment depth offers increased performance and is ideal for fastening in autoclaved aerated concrete, perforated blocks with large chambers and plastered or tiled substrates.
- The SHARK TWIST XL 2C multi-purpose fixing combines the flexibility of polypropylene with the strength of polyamide for maximum stability.
- The innovative 2-component technology ensures optimum adaptation to various building materials and guarantees a secure hold.
- Thanks to the larger embedment depth, this fixing offers a higher load capacity and reliable installation, ideal for demanding applications and substrates.
- The colour combination of white and anthracite enables easy identification and visual adaptation to the environment.

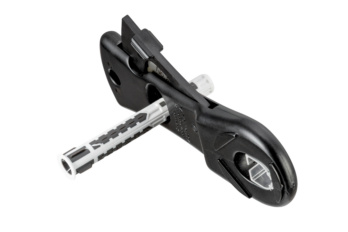

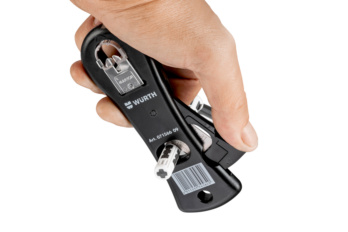

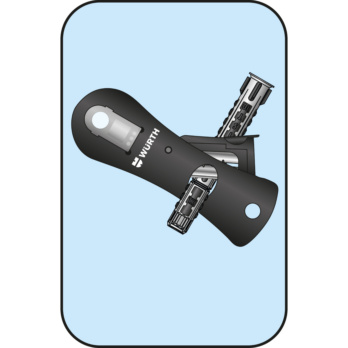

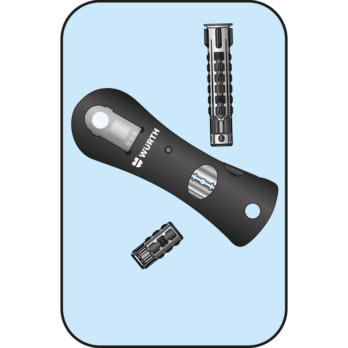

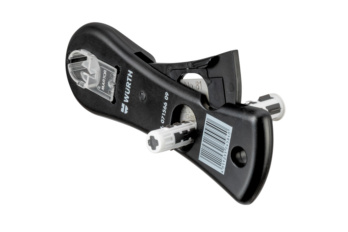

- Can be cut to length at the connecting bar, if required, for use as a standard-length SHARK TWIST 2C multi-purpose fixing
ETA-22/0877 by the end of 2026.
For installation, we recommend the ASSY-D screw.

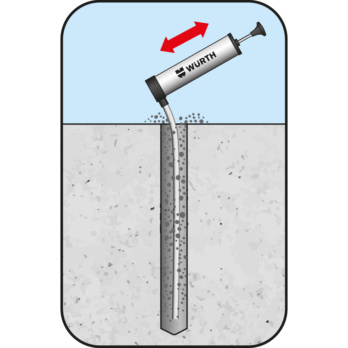

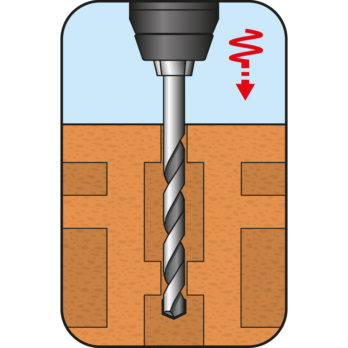

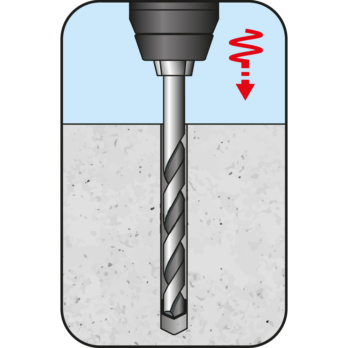

Drill the hole

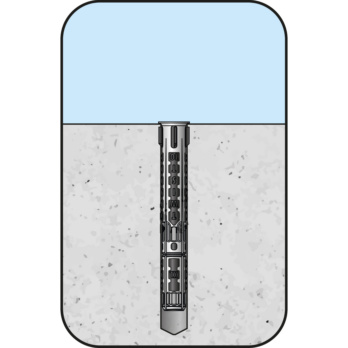

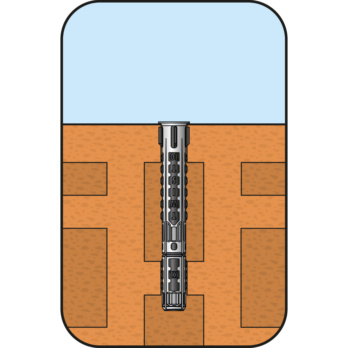

Place anchors in drill hole

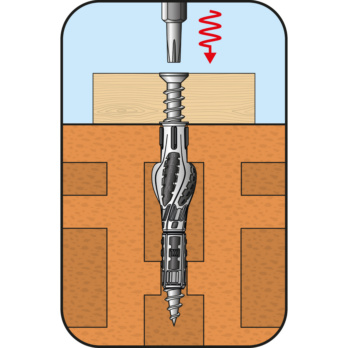

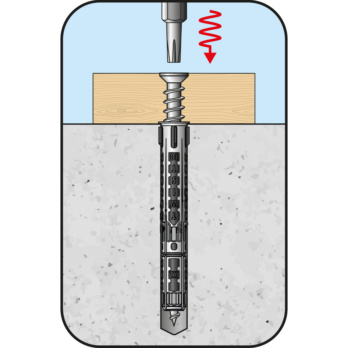

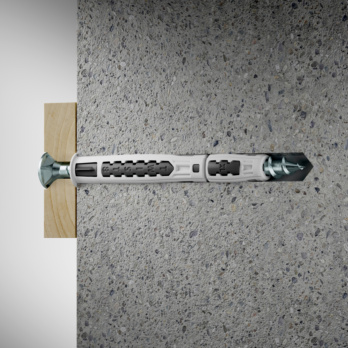

Screw in the screw flush through the attachment part
ETA-22/0877 by the end of 2026.
Datasheets(X)

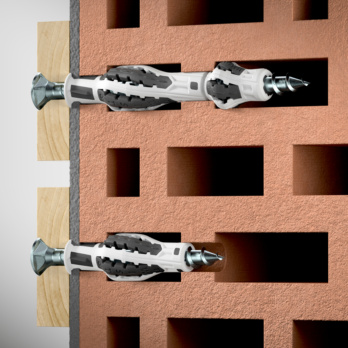

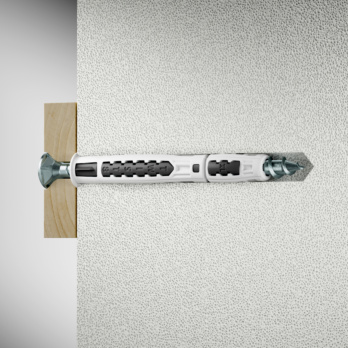

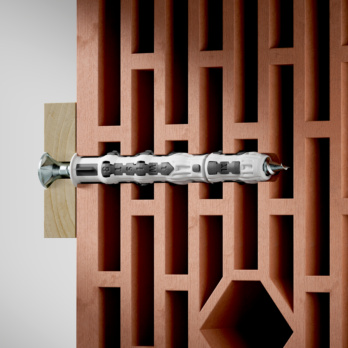

The SHARK TWIST XL is ideal for light to medium loads in a wide range of building materials and is particularly advantageous for use in bricks with large chambers, autoclaved aerated concrete, thick-plastered walls or tiled substrates due to its large embedment depth.
Anchor diameter | 8 mm |
Material | Polypropylene - PP / polyamide - PA |
Colour | White, Anthracite |
Anchor length (l) | 65 mm |
Nominal drill-bit diameter (d 0) | 8 mm |
Drill hole depth (t) | 75 mm |
Embedding depth (h s) | 64 mm |
Min./max. required screw diameter | 5-6 mm |
Min./max. temperature conditions | 50 to -40 °C |
| Version | SHARK TWIST XL 6x50 ASSY-D 5x70 | SHARK TWIST XL 8x65 ASSY-D 6x80 | SHARK TWIST XL 10x80 ASSY-D 8x100 |
| Substrate | rec. load | rec. load | rec. load |
| [kN] | [kN] | [kN] | |
| Concrete ≥ C20/25 | 1,2 | 1,5 | 3,2 |
| Solid brick ≥ Mz12 | 0,6 | 1,1 | 1,9 |
| Solid sand-lime block ≥ KSV12 | 1,1 | 1,5 | 2,6 |
| Vertically perforated brick ≥ Hlz12 | 0,25 | 0,5 | 0,7 |
| Hollow sand-lime block ≥ KSL12 | 0,5 | 1,0 | 2,0 |
| Autoclaved aerated concrete PB2; PP2 | 0,15 | 0,25 | 0,35 |
| Gypsum plasterboard d = 12.5 mm | 0.1* | 0.15* | 0.2* |
| Gypsum plasterboard d = 25 mm | 0,15 | 0,2 | 0,25 |
| Gypsum fibreboard d = 10 mm | 0.3* | 0.35* | 0.4* |
| Gypsum wall construction panels (ρ ≥ 0.85 kg/dm³) | 0,25 | 0,45 | 0,5 |
| * SHARK TWIST XL shortened to SHARK TWIST standard length | |||
