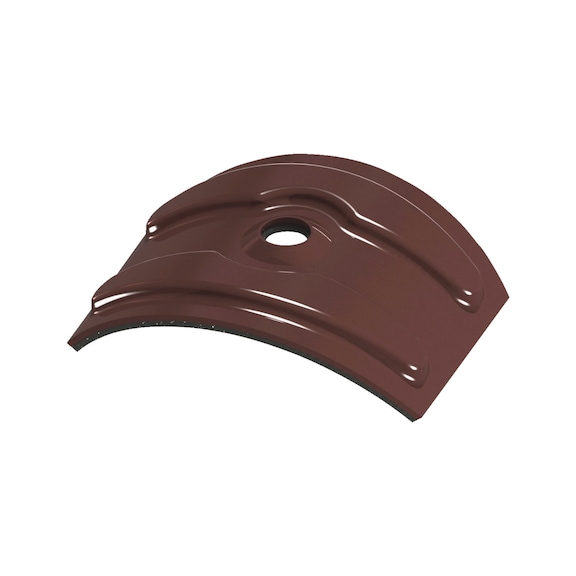

Saddle washer For corrugated profile - CALOTTE-R32/51-RAL3009 Saddle washer For corrugated profile - CALOTTE-R32/51-RAL3009
Saddle washer For corrugated profile - CALOTTE-R32/51-RAL3009 - 1
Saddle washer For corrugated profile - CALOTTE-R32/51-RAL3009 - 2

Saddle washer For corrugated profile

Domed cap for corrugated profiles
CALOTTE-R32/51-RAL3009

Art.-no. 049832514
EAN 4053479546582
All versions

Prices for customers after login
Saddle washer For corrugated profile

Art.-no. 049832514

Prices for customers after login
Quantity
PU
x 100 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

  • Aluminium version with EPDM seal

  • For top-flange installation of roofing made from steel, aluminium and plastic
Notice

Please allow 7 working days for delivery.


Minimum purchase quantity for coloured domed caps is 400 pieces.

Profile manufacturerProfile descriptionWürth saddle washer
Overview of saddle washers
A
B
D
E
F
H
I
J
K
L
M
O
P
R
S
T
W
Alubel SpAAlutech DachW27/25
TEK 28W36/40
Alubel 21W40/26
Alubel 28W36/40
Alubel 40W36/40
Alubel 44W24/30
Aluform GmbHAluform 20/125W33/37
Aluform 29/124W35/20
Aluform 30/153W30/23
Aluform 40/167W23/34
Aluform 42/250W38/30
Aluform 45/150W27/25
Aluform 45/200W36/40
Alutherm DT 900W27/25
Alutherm DT 1000W38/30
Welle 18/76R24/40
Welle 35/137R32/51
Welle 55/177R48/57
ArcelorMittal39/333W30/23
85/280W36/40
100/275W36/40
160/250W17/40
A 35/207W48/33
A 40/183W33/37
A 50/250W32/54
Ondafibre 3005 TW27/25
Ondatherm 1001 TSW30/23
Welle 18/76R24/40
ArpanelD-PIR 40/333W33/37
BalexBTD 45-333W30/23
BruchaDPW15/25
DS StaalprofilDS 20/115W40/26
DS 35/190W36/40
DS 35/206W33/37
DS Sinus 18/75R24/40
DS Sinus 35/143R32/51
SISCOROOF 4GW15/20
SISCOTEC ROOF 4GW15/20
Eternit GmbHWelle 5R48/57
Welle 6R48/57
Welle 8R32/51
Feilmeier AGEL 22/214W33/37
EL 30/220W36/40
EL 35/207W36/40
EL 39/333/SW23/34
EL 40/183W17/40
EL 45/333/SW35/28
EL 50/250W32/54
Welle EL 18/76R24/40
Finish ProfilesDakprofiel 18-76R24/40
Dakprofiel 20-1090W48/33
Dakprofiel 35-1000W33/37
Dakprofiel 42-960R48/57
Fischer Profil35/207W36/40
40/183W17/40
50/250W32/54
85/280W36/40
100/275W36/40
135/310W17/40
150/280W36/40
165/250W17/40
Fischer ThermW36/40
Fischer Therm PlusdachW17/40
Sinus 18R24/40
Sinus 27R32/51
Sinus 42R48/57
Friedrich von Lien AG WeckmanW-1/1064R24/40
W-20/1100W35/28
W-35/1035W36/40
HNB Nordbleche GmbHHochprofil 100/275W36/40
Hochprofil NB 85/280W36/40
Nordblech 18/76R24/40
Nordblech 19/137W48/33
Nordblech 20/125W36/40
Nordblech 35/207W36/40
Nordblech 40/183W17/40
Nordblech 40/333W30/23
Nordblech 50/250W32/54
Hoesch AGT-35.2W36/40
T-40.2W17/40
T-160.1W17/40
ThermoRockW30/23
ISMOEC S.r.lIsicop G5W30/23
Isopan Deutschland GmbHISOCOPW27/25
ISOCOP 4GW27/25
LG 20W40/26
LG 28W33/37
LG 40W27/25
Italpannelli Deutschland GmbHPentaW15/20
JORIS IDE Deutschland GmbHJI 18.76.988R24/40
JI 19.155.1090W36/40
JI 33.250.1000W30/23
JI 35.207.1035W36/40
JI 40.183.915W17/40
JI 45.333.1000W30/23
JI 46.150.900R32/51
JI 50.250.1000W32/54
JID 45.333.100W24/30
JI Ecopaneel 1000W35/20
JI Roof 1000W30/23
JI Roof PIRW30/23
VDB 18.76.988R24/40
VDB 27.111.1000R24/40
VDB 30.220.1100W36/40
VDB 35.207.1035W36/40
VDB 40.183.915W17/40
VDB JL 30.220.1100W36/40
KingspanKS 1000 FFW27/25
KS 1000 RWW24/30
Klinger & Partner Profilvertrieb GmbH18.76.1064R24/40
20.125.1000W33/37
30.200.1000W35/20
30.207.1035W48/33
35.207.1035W36/40
40.183.915W36/40
42.160.960R48/57
45.333.1000W30/23
50.250.1000W32/54
Metecno HipertecW15/20
Klöckner & CoKAS 19/105 KD SW48/33
KAS 19/105W48/33
KAS 30/262 KD SW36/40
KAS 35/207W33/37
KAS 40/183W17/40
KAS 45/333 KDW24/30
KAS 45/333 KD SW30/23
KAS 50/250W32/54
KAS 85/280W36/40
KAS 89/305W36/40
KAS 106/250W17/40
KAS 110/333W17/40
KAS AL-20/125W33/37
KAS AL-20/125-AW33/37
KAS AL-29/124-AW35/20
KAS AL-30/153-AW24/30
KAS AL-35/207W36/40
KAS AL-40/167-AW23/34
KAS AL-40/183W17/40
KAS AL-42/250-AW24/30
KAS AL-45/150-AW27/25
KAS AL-45/200-AW36/40
KAS AL-45/333 KDW30/23
KAS AL-50/250W32/54
KAS AL-WP 18/76R24/40
KAS AL-WP 27/111R32/51
KAS AL-WP 35/137R32/51
KAS AL-WP 42/160R48/57
KAS AL-WP 55/177R48/57
Lattonedil DE GmbHEurofire type EFW35/20
IsocopreW35/20
Laukien GmbH18/76R24/40
20-75W30/23
22-214W36/40
27/111R32/51
35-207W36/40
40-100W38/30
42/160R48/57
50-250W36/40
55/177R48/57
Lindab GmbHLP 20W35/28
LP 35W36/40
LP 1100W40/26
LTP 20W35/28
LVP 20W35/28
Sinus 18R24/40
Luxmetall Deutschland GmbHLM D-18/76R24/40
LM D-20/138W40/26
LM D-35/207W36/40
LM D-45/333/SW27/25
MAAS Profile GmbH & Co. KG20-75W27/25
20-100W33/37
22-214W36/40
35-207W36/40
40-100W38/30
45-150W27/25
45-333 SW30/23
50-250W36/40
WP 18-76R24/40
WP 27-111R32/51
WP 42-160R48/57
Welle 18-76R24/40
Welle 27-111R32/51
Welle 42-160R48/57
Welle 55-177R48/57
Metecno Bausysteme GmbHG4W15/20
H-Wall 8PR24/40
Hipertec RoofW15/20
Hipertec Roof SoundW15/20
Montana Bausysteme AGMTD TLW23/34
SP 18/76R24/40
SP 20/154W35/28
SP 26/143W36/40
SP 27/111R32/51
SP 30/221W36/40
SP 35/207W36/40
SP 40/183W17/40
SP 41/193.5W36/40
SP 42/160R48/57
SP 44/333 SW38/30
SP 44/333W24/30
SP 45/150W36/40
SP 59/225W23/34
SP 80/277W17/40
SP 105/345W36/40
SP 111/310W17/40
SP 135/310W36/40
SP 153/280W17/40
SP 160/250W17/40
Münker Metallprofile GmbHM 18.1/76R24/40
M 18/76R24/40
M 20/210W36/40
M 27.1/111R32/51
M 27/111R32/51
M 35.1/207W48/33
M 35/207W36/40
M 40.1/183W33/37
M 40/183W17/40
M 40KD/333W30/23
M 50/250W32/54
M 85/280W36/40
M 100/275W17/40
M 135.1/310W36/40
M 150/280W36/40
M 160/250W17/40
O-Metall20.125/8W33/37
20.156/7W40/26
25.268/4W38/30
25.280/3W17/40
30.153/7W27/25
30.200/5W30/23
30.207/5W36/40
35.250/4W33/37
39.333/3W35/28
40.183/5W17/40
40.250/4W27/25
45.150/6W27/25
45.333/3W30/23
50.250/4W32/54
DPW27/25
DP-FW27/25
Welle 18.76R24/40
Welle 27.111R32/51
Welle 42.160R48/57
Welle 55.177R48/57
PROGE Profilverkauf Gehrmann GmbH19/105W48/33
20/125W33/37
20/154W35/28
26/143W36/40
30/207W48/33
30/220W36/40
30KDW36/40
35.1/207W48/33
35/207W36/40
39/333W30/23
40.1/183W33/37
40/183W17/40
41/193.5W33/37
45/150W36/40
45/333W24/30
45KD-SW30/23
50/250W32/54
58KDW32/54
59/225W23/34
70/200W32/54
80/277W17/40
85/280W36/40
89/305W36/40
100/275W17/40
105/345W17/40
106/250W17/40
Welle 18/76R24/40
Welle 27/111R32/51
Welle 42/160R48/57
Welle 55/177R48/57
Pflaum & Söhne Bausysteme GmbH32/207 BW48/33
32/207 TW48/33
85/280 TW36/40
1001 TSW27/25
Plannja GmbHPlannja 19W40/26
Plannja 20-75W30/23
Plannja 35W36/40
Plannja 45/45R/45FW36/40
Sinus 18R24/40
Sinus 51R48/57
Romakowski GmbH & Co. KGType DW15/25
Type DuoW15/25
Ruukki ConstructionSP2C PIRW36/40
SPC WW36/40
S.A.B. Profil GmbHSAB 18/988R24/40
SAB 18/1064R24/40
SAB 19/1050W48/33
SAB 19KD/1050-SW40/26
SAB 27/1000R24/40
SAB 30KD/1050 SW36/40
SAB 35R/1035W36/40
SAB 40R/915W17/40
SAB 42/960R48/57
SAB 45KD/1000W24/30
SAB 45KD/1000-SW30/23
SAB 50R/1000W32/54
SAB 58KD/945-SW32/54
SAB 70R/800W32/54
SAB 85R/1120W36/40
SAB 89 R/915W36/40
SAB 100R/825W17/40
SAB D 65-75-95-115-135W33/37
SAB W 100-120-SLR24/40
S.A.M. Bausysteme UGST 35-207W36/40
SW 18-76R24/40
SIEGMETALLS 18/76R24/40
S 35/207W48/33
S 75/305W36/40
S17/136W40/26
Salzgitter BauelementePS 35/207W36/40
PS 40/183W17/40
PS 50/250W32/54
PS 85/280W36/40
PS 100/275W17/40
SIP DW36/40
Trimo DE GmbHSNVW27/25
Wurzer Profiliertechnik GmbH20/125W33/37
WU 18/76R24/40
WU 27/111R32/51
WU 30/200W35/20
WU 30D/207W48/33
WU 35/207W36/40
WU 40/183W17/40
WU 45/333W30/23
WU 50/250W32/54
WU 55/177R48/57
Product information

Würth Catalogue

Datasheets(X)

CAD data (available after login)

Certificates/ Documents

 |

 |

Material

Aluminium base alloy, ALMG3

Surface

Plain

Material of gasket

Ethylene propylene diene terpolymer rubber

Colour

Oxide red RAL 3009

Radius

32 mm

Width (b1)

51 mm

Length (l1)

45 mm

Diameter of hole (d1)

7.3 mm

Suitable for roof profile

Aluform corrugated sheet 35/137, Dansk Profiltechnik DP Sinus 35/143, Eternit wave 8, FISCHER Sinus 27, JORIS IDE JI 46.150.900, KLÖCKNER KAS AL-WP 27/111, KLÖCKNER KAS AL-WP 35/137, Laukien 27/111, Maas WP 27-111, Maas corrugated sheet 27-111, Montana SP 27/111, Münker M 27.1 / 111, Münker M 27/111, O Metall corrugated sheet 27,111, PROGE corrugated sheet 27/111, Wurzer WU 27/111

RoHS-compliant

Yes
