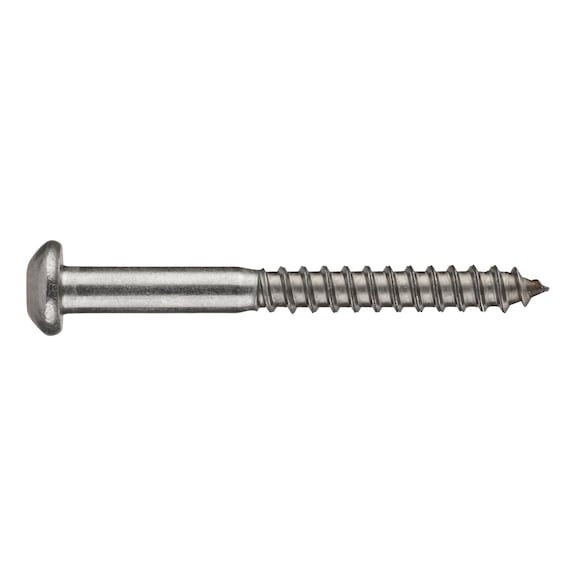

Screw for anchors A2 for the tested SHARK DRY fixing system - SCR-ANC-SHARK DRY-A2-PH-TX30-6X60

Screw for anchors A2 for the tested SHARK DRY fixing system - SCR-ANC-SHARK DRY-A2-PH-TX30-6X60 - 1

Screw for anchors A2 for the tested SHARK DRY fixing system - SCR-ANC-SHARK DRY-A2-PH-TX30-6X60 - 2

Screw for anchors A2 for the tested SHARK DRY fixing system

Name: Screw for anchors A2 for the tested SHARK DRY fixing system
Brand: Würth
SKU: 590820660

Screw for SHARK Dry
SCR-ANC-SHARK DRY-A2-PH-TX30-6X60

Art.-no. 590820660

EAN 4099618777547

All versions

Individual price display after login

Screw for anchors A2 for the tested SHARK DRY fixing system

Art.-no. 590820660

Individual price display after login

Quantity

x 200 pcs

Exclusively for trade customers

Login/Register
Call customer service:

SHARK TWIST multi-purpose fixings and sealing pads in conjunction with A2 stainless steel screws offer a reliable, waterproof fastening solution in wet rooms.

Made from high-quality A2 stainless steel for good corrosion resistance and durability

Plain surface provides an attractive appearance and additional protection against environmental factors

Button head design for even load distribution and an aesthetic fastening solution

Ideal for use with SHARK TWIST fixings - in addition to the sealing pads for SHARK DRY, they form a sealing, watertight attachment

Meets the requirements for drill hole seals in accordance with DIN 18534

Can be used indoors for load classes W0-I (low); W1-I (moderate); outside Germany also W2-I (high); W3-I (very high)

Tested in accordance with PG-AIV-F and EAD 030352-00-0503

Tested by Säurefliesner e.V.

Application area

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

The SHARK DRY A2 screw for anchors is ideal for reliable sealing/fastening solutions in wet rooms in conjunction with the SHARK TWIST multi-purpose anchor and the corresponding sealing pads.

Instructions

1. Drill the hole

2. Remove the drill debris from the drill hole

3. Ensure that the surface around the drill hole is free of dust and grease

4. Position first the sealing pad with the centre hole

5. Insert the SHARK TWIST fixing into the drill hole

6. Position the second pad (without hole) centrally on the fixing

7. Use your finger to press the pads around the collar

8. Screw the stainless steel screw through the fixture until the screw head rests on it

Material	Stainless steel A2
Surface	Plain
Nominal diameter (d)	6 mm
Length (l)	60 mm
Thread length (lg)	44 mm
Head diameter (d_h)	12 mm
Head height (k)	3.8 mm
Internal drive	TX30
Head type	Half round head

Required accessory:

Product

Description

Quantity

Price
/PU

MFD-S multi-purpose drill bit with straight shank

DRL-GENPURP-MFDS-D8-L120-WL80MM

Art.-no. 0641208012

Drills through virtually any material

Sealing pad for the tested SHARK DRY fixing system

SEALPAD-(SHARK DRY)-20/8-100PAIRS

Art.-no. 5908280020

Sealing pads enable reliable sealing in wet rooms in conjunction with the SHARK TWIST multi-purpose fixing and corresponding screws

x 1 pcs

SHARK TWIST 2C multi-purpose anchor

DWL-PLA-SHARK-TWIST-8X46

Art.-no. 590680846

The simple, innovative multi-purpose anchor combines flexibility and ease of installation with an eight-way knot
