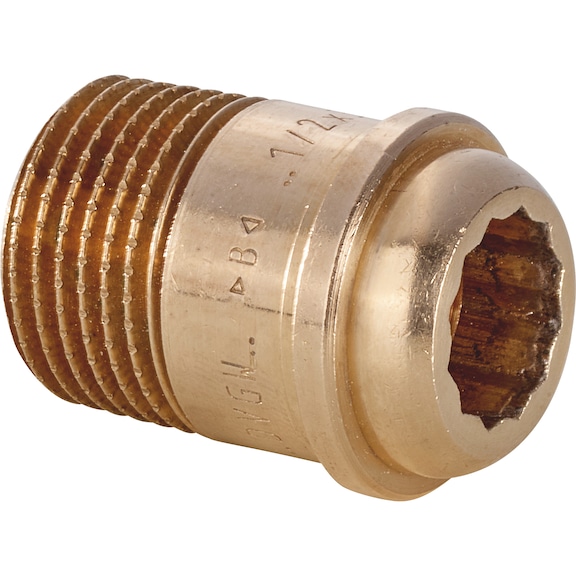

Screw-in part, tapered sealing, with male thread EN1254, gunmetal, 4382G
EN1254 gunmetal 4382G
FITT-INR-1254-ET-RB-1 1/4X1 1/2IN-4382G
Register now and access more than 125,000 products
- For universal use in various areas of application such as shipbuilding, mechanical engineering and equipment engineering
- Meets the requirements of various DVGW regulations
- Other certification institutes too such as KIWA, BSI Kitemark, British Gas, Gaz de France, NF, SVGW
Suitability for drinking water is confirmed by DVGW type examination certificates DV-7411AO2008 (copper fittings) and DV-7401AS2290 (gunmetal connection fittings). This is also confirmed by ÜA registration certificate no. R-15.2.3-20-17025 for 4000 series and R-15.2.3-20-17026 for 5000 series.
Datasheets(X)
- Drinking water installations DIN EN 806 and DIN 1988
- Natural gas installations DIN EN 1775 and DVGW G 600 (TRGI)
- LPG installations, technical rules for LPG (TRF)
- Heating oil supply systems DIN 4755 (TRÖ)
- Hot water heating DIN EN 12828
- Local and district heating lines DIN 4747
- Thermal solar collectors
- Water-based room cooling systems
- Refrigeration equipment (ACR)
- Compressed air
- Equipment for the distribution of technical and medical gases
- Rainwater harvesting systems DIN 1989
- Fire-extinguishing pipes "wet" DIN 14462
- Sprinkler systems "wet" VdS CEA 4001
- Industrial and process water
- Wastewater pumping stations
 | |
Nominal diameter | 1-1/4 in |
Nominal diameter 2 | 1-1/2 in |
Length (a) | 46 mm |
Connection thread | R 1 1/4 x G 1 1/2 inch |
Connection type | 1. connection conical male thread (R), 2. connection conical male thread (R) |
Width across flats (S/S1) | 0 - not applicable |
Width across flats 2 (S2) | 0 - not applicable |
Material | Red bronze - gunmetal |
Surface | Plain |
