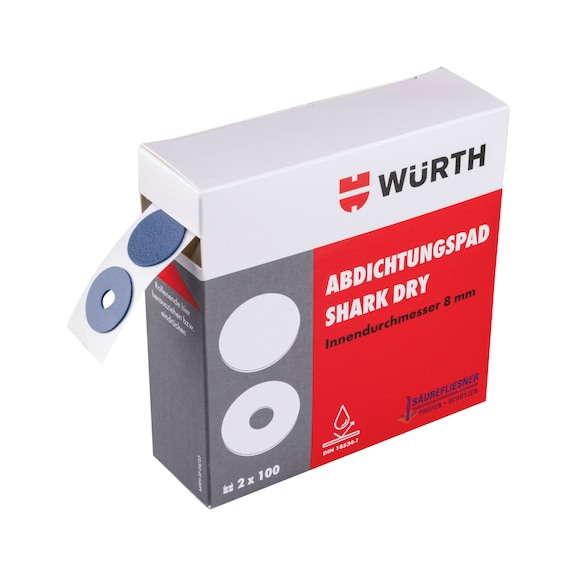

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 1

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 2

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 3

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 4

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 5

Sealing pad for the tested SHARK DRY fixing system - SEALPAD-(SHARK DRY)-20/8-100PAIRS - 6

Sealing pad for the tested SHARK DRY fixing system

Name: Sealing pad for the tested SHARK DRY fixing system
Brand: Würth
SKU: 5908280020

Sealing pad for SHARK Dry
SEALPAD-(SHARK DRY)-20/8-100PAIRS

Art.-no. 5908280020

EAN 4099618941214

All versions

Individual price display after login

Sealing pad for the tested SHARK DRY fixing system

Art.-no. 5908280020

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Sealing pads enable reliable sealing in wet rooms in conjunction with the SHARK TWIST multi-purpose fixing and corresponding screws

Made of a high-quality closed-cell membrane with a waterproof adhesive layer

Recommended for use with SHARK TWIST fixings - in addition to the A2 screws for SHARK DRY, they form a waterproof fastening

Meets the requirements for sealing drill holes in accordance with DIN 18534

Can be used indoors for load classes W0-I (low); W1-I (moderate); outside Germany: W2-I (high); W3-I (very high)

Tested in accordance with PG-AIV-F and EAD 030352-00-0503

Tested by Säurefliesner e.V.

Proof of Performance

Test report 101462401.001 in accordance with EAD 030352-00-0503, complies with testing principles for issuing general construction test certificates for sealing in conjunction with tile and panel covering part 1. (PG-AIV-F).

Application area

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

The SHARK DRY A2 screw for fixings is ideal for reliable sealing/fastening solutions in wet rooms in conjunction with the SHARK TWIST multi-purpose fixing and the corresponding A2 screws.

Instructions

1. Drill the hole

2. Remove the drill dust from the drill hole

3. Ensure that the surface around the drill hole is dust-free and free of grease

4. Position first the sealing pad with the centre hole

5. Insert the SHARK TWIST anchor into the drill hole

6. Position the second pad (without hole) centrally on the anchor

7. Use your finger to press the pads around the collar

8. Screw the stainless steel screw through the fixture until the screw head rests on it

Number of pads	100 Pair
Outer diameter	20 mm
Inside diameter of hole (d hole)	8 mm
Thickness	0.8 mm
Colour	Blue
Material	Closed cell polyethylene foam
Adhesive base	Synthetic rubber
Max. temperature resistance	70 °C
Min. temperature resistance	-30 °C
Backing material	PP foil
Colour of base material	White
Product weight (per item)	30.000 g

Required accessory:

Product

Description

Quantity

Price
/PU

MFD-S multi-purpose drill bit with straight shank

DRL-GENPURP-MFDS-D8-L120-WL80MM

Art.-no. 0641208012

Drills through virtually any material

SHARK TWIST 2C multi-purpose anchor

DWL-PLA-SHARK-TWIST-8X46

Art.-no. 590680846

The simple, innovative multi-purpose anchor combines flexibility and ease of installation with an eight-way knot

Screw for anchors A2 for the tested SHARK DRY fixing system

SCR-ANC-SHARK DRY-A2-PH-TX30-6X60

Art.-no. 590820660

SHARK TWIST multi-purpose fixings and sealing pads in conjunction with A2 stainless steel screws offer a reliable, waterproof fastening solution in wet rooms.
