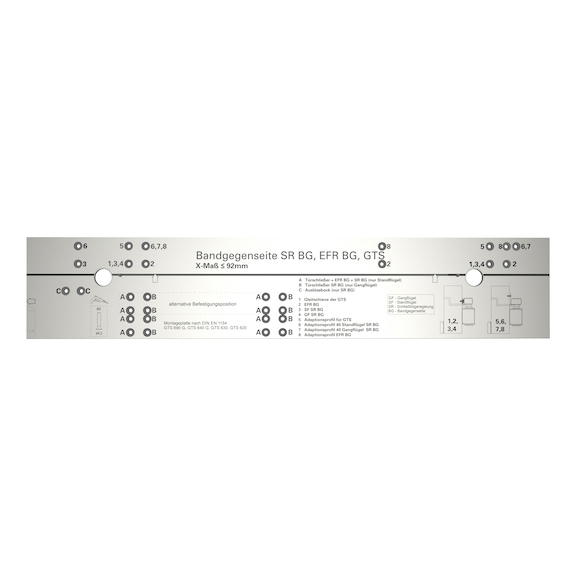

Series drilling jig for door closers and systems
Series drilling jig for door closer
DRLJIG-DRCLSR-GTS-DRCLSR-BG-ALU
Register now and access more than 125,000 products
With this drilling jig all groups of boreholes (hinge-side, opposite hinge-side) for sliding rail door closers (GTS), scissor arm mechanisms (STS) and systems can be carried out efficiently.
Specified dimensions not binding. Subject to technical changes!
Datasheets(X)
Room doors, apartment entrance doors, house doors, fire doors, smoke doors
Design | Opposite hinge side |
Suitable for type | GTS 620, GTS 630, GTS 640 G, GTS 690 G, ERR-BG, SR-BG, SR-BG-EFR2 |
Material | Aluminium |
Surface | Anodised |
DIN direction | DIN R/L |
