Shelf support DUPLO With flat support
Shelf support DUPLO with flat support
SHLFSPRT-DUPLO-FLAT-PAD-ZD-(NI)-5MM
Art.-no. 0683311151
EAN 4065746671491
Individual price display after login
Exclusively for trade customers
Register now and access more than 125,000 products
For inserting into row of holes 5 mm
- For row of holes 5 mm
- Load capacity 15 kg per shelf support
- Tested in accordance with DIN 16337:2013
Product information
Datasheets(X)
 | |

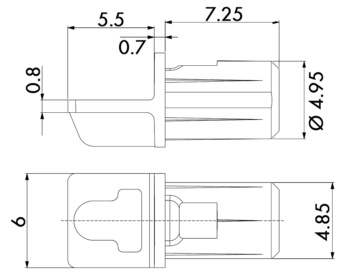

Material | Die-cast zinc |
Surface | Nickel plated |
Drill diameter | 5 mm |
Min. drill hole depth | 8 mm |
Length (L) | 13.45 mm |
Width | 6 mm |
Height | 3 mm |
Length of pin | 7.25 mm |
