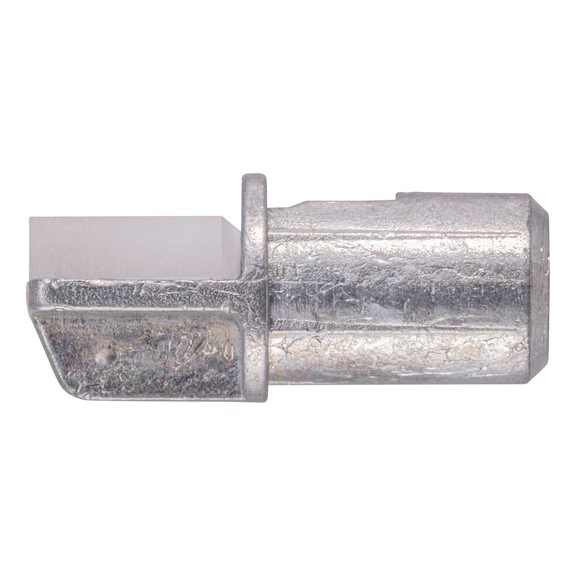

Shelf support DUPLO With rubber pad
Shelf support DUPLO with rubber pad
SHLFSPRT-DUPLO-RUBBER-PAD-5MM-ZD-ZN
Art.-no.
0683311154
EAN 4065746671354
Prices for customers after login
Exclusively for trade customers
Register now and access more than 125,000 products
For inserting into row of holes 5 mm
- For row of holes 5 mm
- Load capacity 15 kg per shelf support
- Tested in accordance with DIN 16337:2013
Product information
Datasheets(X)
 | |
Material | Die-cast zinc |
Surface | Zinc plated |
Drill diameter | 5 mm |
Min. drill hole depth | 8 mm |
Length (L) | 13.45 mm |
Width | 6 mm |
Height | 4.5 mm |
Stud diameter | 4.85 mm |
Length of pin | 7.25 mm |
