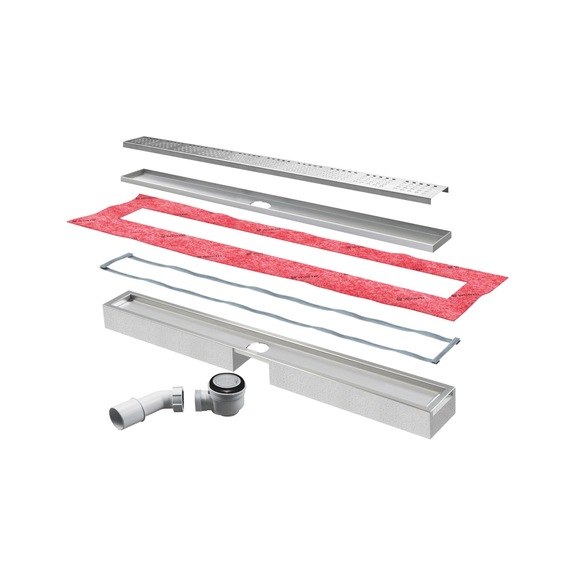

Shower channel set Assembly block

Name: Shower channel set Assembly block
Brand: Würth
SKU: 5273303070

Shower channel with assembly block set
DRNCHAN-ASMBY-BLCK-SET-700X112MM

Art.-no. 5273303070

EAN 4058794034349

All versions

Prices for customers after login

Shower channel set Assembly block

Art.-no. 5273303070

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

With assembly block as substructure

Sealing collar with overlap

100% watertight

Easy, reliable connection to the second sealing layer

No additional sealing strips required

General construction authority test certificate (ABP) relating to leak tightness

Safety tested for the overall system, i.e. shower pan, tile adhesive, sealing membrane, corner seals etc.

Sealing collar is only installed after the screed has been applied using the butyl sealing tape

No damage to sealing collar during construction phase

Height of assembly block can be reduced

Variable installation height according to drain used.

Second drainage line in accordance with DIN 18195-5

Prevents build-up of standing water on compound sealant and the associated damage

Can also be mounted on the wall itself

Flexible to use

Height of channel tray can be adjusted in situ

For universal use with covers from 3–12 mm (21 mm*)

Notice

*For channel tray upstands with a height of up to 21 mm, please also order the spacing plate set, art. no. 5273 321 003.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For integrating in the screed for floor-level showers.

Length x width (L x B)	730 x 108 mm
Height (H)	112 mm
Material of assembly block	EPS rigid foam
Material of sealing collar	PP - Polypropylene
Material of channel-tray	Stainless steel
Gutter length (L_R)	700 mm
Gutter width (B_R)	76 mm
Flange width	15 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Sound insulation mat

SOUINSUMAT-1250X1250X5MM

Art.-no. 5273321010

For isolating shower pans/shower channels

x 1 pcs

Flex fast-setting adhesive For installing shower boards and base elements

QCKADH-2,5KG-BUCKET

Art.-no. 5273321015

x 1 pcs
