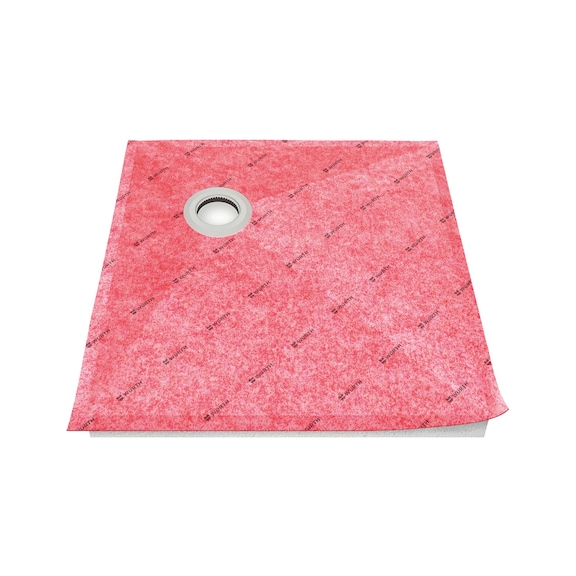

Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM
Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM - 1
Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM - 2
Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM - 3
Shower pan Point, non-central - SHWRBRD-PT-DECENT-900X900X40MM - 4

Shower pan Point, non-central

Shower board, point drainage peripheral
SHWRBRD-PT-DECENT-900X900X40MM

Art.-no. 5273100091
EAN 4058794033823
All versions

Prices for customers after login
Shower pan Point, non-central

Art.-no. 5273100091

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Floor-level shower unit with point drain.

Bonded sealing membrane with 7 cm overlap


  • 100% watertight

  • Easy, reliable connection to the second sealing layer

  • No additional sealing strips required


General construction authority test certificate (ABP) relating to leak tightness


Safety tested for the overall system, i.e. shower pan, tile adhesive, sealing membrane, corner seals etc.



High strength


Suitable for barefoot and wheelchair use with a tile size of 2 x 2 cm or above

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Tileable substructure for floor-level showers

Width x depth x height (B x T x H)

900 x 900 x 40 mm

Material

PS - Polystyrene

Material of waterproof strip

PP - Polypropylene

Volumetric weight

60 kg/m³

Gradient

1.4 %

Crosswise distance from centre of outlet to edge (Y)

250 mm

Longitudinal distance from centre of outlet to edge (X)

250 mm

Shower board height at the drain (S)

25 mm

Sealing overlap (Z)

70 mm

Min. installation height with outlet horizontal 5273 320 001

117 mm

Min. installation height with outlet vertical 5273 320 002

40 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Horizontal drain Point
Horizontal drain Point

DRN-BRD-PT-HORIZ-DN50-H77

For shower pan, point
x 1 pcs
Vertical drain Point
Vertical drain Point

DRN-BRD-PT-VERTL-DN50

For shower pan, point
x 1 pcs
Flex fast-setting adhesive For installing shower boards and base elements
Flex fast-setting adhesive For installing shower boards and base elements

QCKADH-2,5KG-BUCKET

x 1 pcs
