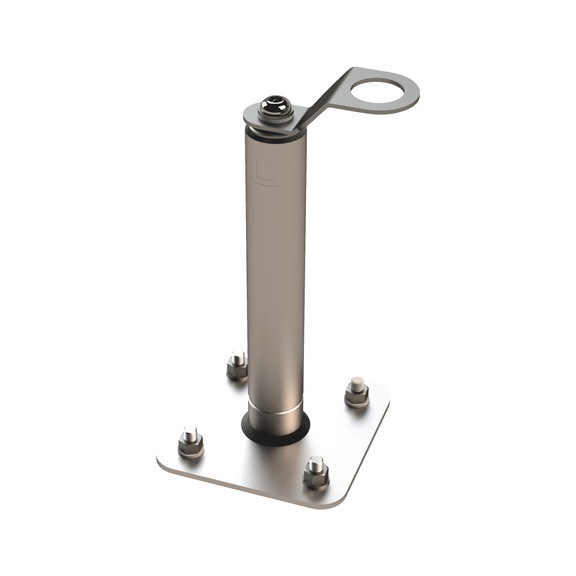

Single anchor point for concrete With 360° fixing bolt anchor
Single anchor point f. concrete w/ Fixanchor 360°
ANCPT-S-CO353-43-600
Art.-no.
0838906353
EAN 4062856705313
Prices for customers after login
Exclusively for trade customers
Register now and access more than 125,000 products
Fall arrester system with integrated fall indicator for quick and easy installation in concrete by way of the tried-and-tested Würth anchor technology
- 360° rotating anchor eye
- The integrated fall indicator on the anchor point indicates a fall
- Can be used as an intermediate or end/corner support (43 mm diameter) in safety harness systems
- Can be delivered in different rod lengths
- Reduced force transmission to the structure through defined plastic deformation in the event of a fall
- Resistant to corrosion and weathering: The single anchor point is made from stainless steel (at least grade A2)
Notice
- Anchoring of the single anchor point in concrete (minimum requirement C20/25) with Würth W-FAZ/A4 M10 x 90 fixing bolt anchor
- Fastening material is included in the scope of delivery (except mortar compound)
- Observe the installation instructions and approvals for the fasteners and single anchor point.
- European Technical Assessment (ETA) 20/0965
- Also certified in accordance with DIN EN 795:2012 Type A (tests for deformation, static and dynamic strength and integrity) and CEN/TS 16415
Product information
Datasheets(X)
Application area
- Suitable for securing up to a maximum of three persons in connection with personal protective equipment against falling
- The single anchor point can be used for routine work in areas with fall hazards, such as maintenance and assembly work on flat roofs etc.
- The anchor may be used in reinforced or non-reinforced standard concrete of a strength class of at least C20/25 and at most C50/60 in accordance with EN 206:2000-12 using the specified fixing elements only
Material | Stainless steel A2, 1.4307 |
Rod length | 600 mm |
Diameter | 43 mm |
Suitable for use in the following materials | Concrete |
Height | 605 mm |
Surface | Stainless steel FINISH |
