SlideLine 56 sliding door fitting

Name: SlideLine 56 sliding door fitting
Brand: Würth
SKU: 0684706131

Sliding door fitting SlideLine 56
SLIDDRFITT-SLIDELINE-56-3D

Art.-no. 0684706131

EAN 4062856708543

All versions

Similar products

Individual price display after login

SlideLine 56 sliding door fitting

Art.-no. 0684706131

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Sliding door fitting for inset sliding doors with runners beneath, boasting uncomplicated technology and simple installation

Quick installation: cut-to-length profiles are pressed into two identical machined grooves

Easy screw mounting through cup hole drilling of the running components

Safe positioning and convenient adjustment of the door into lower running profile

Easy door mounting: Push the guide part up, fix it in the guide profile and you're done!

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Sideboards, wardrobes, walk-in wardrobes

Instructions

For screwing to the wall. To assemble the lower carriage, a dia. 35 mm cup hole is required


Material of door	Wood
Installation option	Inset
Suitable for max. door weight	40 kg

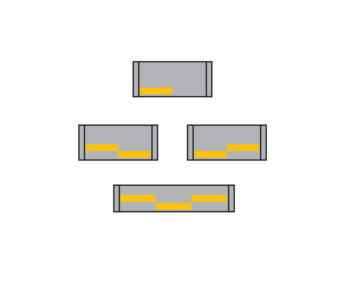

Suitable for number of doors	3
Suitable for min. door thickness	16 mm
Suitable for max. door thickness	19 mm
Suitable for min./max. door thickness	16-19 mm
Suitable for min. door width	500 mm
Suitable for max. door width	1000 mm
Suitable for min./max. door width	500-1000 mm
Suitable for max. door height	2000 mm

Required accessory:

Product

Description

Quantity

Price
/PU

Running and guide rails SlideLine 56

RL-(F.SLIDDRFITT-SLIDEL-56)-SILVRCOL-3M

Art.-no. 0684706135

For groove installation in the top and bottom panel

x 1 pcs

Running and guide rails SlideLine 56

RL-(F.SLIDDRFITT-SLIDEL-56)-DRKBRWN-3M

Art.-no. 0684706136

For groove installation in the top and bottom panel

x 1 pcs
