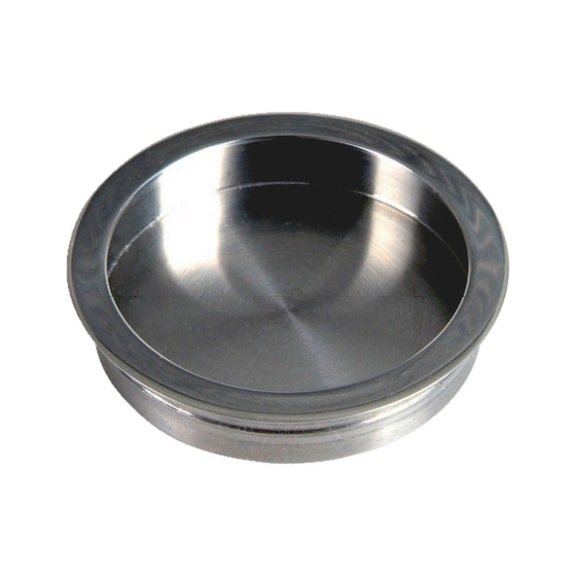

Sliding door shell-type handle type B
Shell-type handle, type B
SHELL-F.SLIDDR-TYPB -A2
Register now and access more than 125,000 products
The sliding door shell-type handles are pressed in and held by harpoon bars.
Specified dimensions not binding. Subject to technical changes!
Datasheets(X)
Suitable for wooden interior sliding doors.
 | |
Type description | Type B |
Material | Stainless steel |
Gloss level | Matt |
Suitable for | Sliding wooden doors |
DIN direction | DIN R/L |
Outer diameter | 75 mm |
Internal diameter | 61 mm |
Included in delivery | 2 x sliding door shell-type handles |
Diameter of hole | 67 mm |
