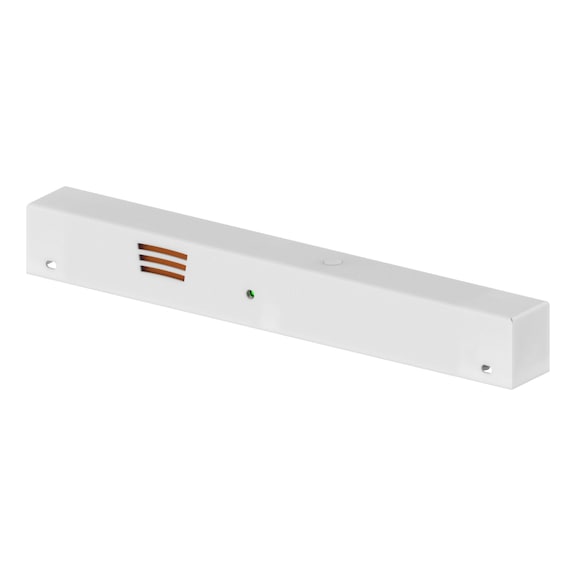

Smoke detector system - SMKDETRSYS-F.CSEQ-RSZ-WHTE

Smoke detector system - SMKDETRSYS-F.CSEQ-RSZ-WHTE - 1

Smoke detector system

Name: Smoke detector system
Brand: Würth
SKU: 0688002091

SMKDETRSYS-F.CSEQ-RSZ-WHTE

Art.-no. 0688002091

EAN 4061975687364

All versions

Similar products

Individual price display after login

Smoke detector system

Art.-no. 0688002091

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Quick and easy installation

External smoke detector system for controlling Würth hold-open devices and the THM door holding magnet

Consisting of smoke switch, power supply, trigger switch and continuous cover cap

Complies with current standards and test specifications

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For administrative and office buildings, hospitals, hotels, arenas and stadiums, museums, department stores and shopping centres.


Area of application	Object area, Private area
Suitable for	Fire protection doors, Smoke protection doors, Panic doors
Type of assembly	Screw-on
Colour	Traffic white, similar to RAL 9016
Min./max. temperature conditions	-20 to 75 °C
Environmental Product Declaration	No

Additional accessory:

Product

Description

Quantity

Price
/PU

P - 250 test gas for smoke detector and smoke switch

TESTGAS-(F.HOLDOPN-DEV)-P250-DET-250ML

Art.-no. 0688002101

The test gas is used for functional testing (smoke simulation) of the smoke detector and smoke switch

918-5 test gas for smoke detector and smoke switch

TESTGAS-F.DET-918/5-250ML

Art.-no. 0688002102

Used for functional testing (smoke simulation) of the smoke detector and smoke switch

THM 425 holding magnet

ADHMAGN-F.CSEQ-THM425-WLMNT

Art.-no. 0688002110

Magnetic door holding magnet in round design with concealed connection clamps

x 1 pcs

THM 413 holding magnet

ADHMAGN-F.CSEQ-THM413-FLRINSTL

Art.-no. 0688002120

Magnetic door holder with concealed connection terminals for floor mounting

x 1 pcs

Holding magnet THM 433

ADHMAGN-F.CSEQ-THM433-WLINSTL

Art.-no. 0688002130

For closing sequence control and hold-open devices, with concealed connection clamps

x 1 pcs

THM 439 holding magnet

ADHMAGN-F.CSEQ-THM439/185

Art.-no. 0688002141

The most universal adhesive magnet

x 1 pcs

THM 439 holding magnet

ADHMAGN-F.CSEQ-THM439/335

Art.-no. 0688002142

The most universal adhesive magnet

x 1 pcs

THM 439 holding magnet

ADHMAGN-F.CSEQ-THM439/485

Art.-no. 0688002143

The most universal adhesive magnet

x 1 pcs

Anchor plate ASS 55

ANCPLT-F.CSEQ-ASS55

Art.-no. 0688002160

x 1 pcs

Anchor plate ASS 65

ANCPLT-F.CSEQ-ASS65

Art.-no. 0688002161

x 1 pcs

AFS 55 angled anchor plate

ANGLANCPLT-F.CSEQ-AFS55

Art.-no. 0688002170

The anchor plate that adapts to the angle of the wall

x 1 pcs

AFS 65 angled anchor plate

ANGLANCPLT-F.CSEQ-AFS65

Art.-no. 0688002171

The anchor plate that adapts to the angle of the wall

x 1 pcs

Hand switch HAT 02

HNDSWTCH-F.CSEQ-(HAT-02)-AP-UP

Art.-no. 0688002180

x 1 pcs
