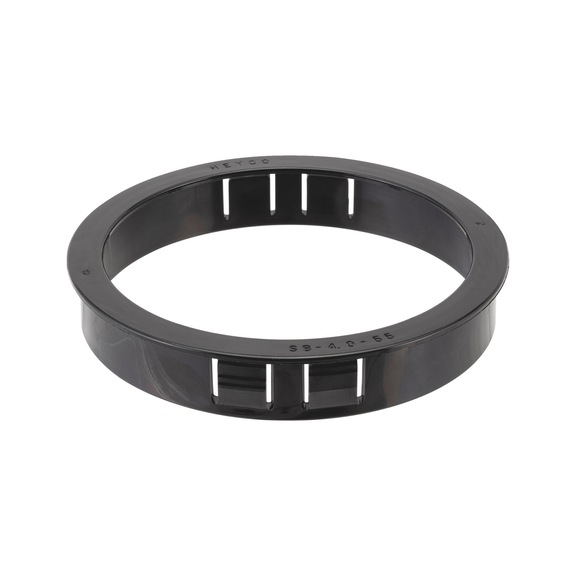

Snap-on grommet
Snap-on bushing
SNAPSLEV-PA-BLACK-88,1X101,6X6,4MM
Register now and access more than 125,000 products
- Protects cables and hoses from damage caused by sharp edges
- For use in drilled and punched holes
- Simple, one-side push-on mounting
- Pull-out force of up to 155 N
- UL/CSA approved E15331
 | |
Internal diameter (d) | 87.3 mm |
Drill hole (D1) | 101.6 mm |
Outer diameter (D) | 105.6 mm |
Installation thickness (h1) | 6.4 mm |
Height (H) | 1.6 mm |
Min./max. installation thickness | 0.8-6.4 mm |
Colour | Black |
Material | PA 6.6 V-2 - Polyamide |
Silicone-free | Yes |
RoHS-compliant | Yes |
Min./max. temperature resistance | -35 to 85 °C |
