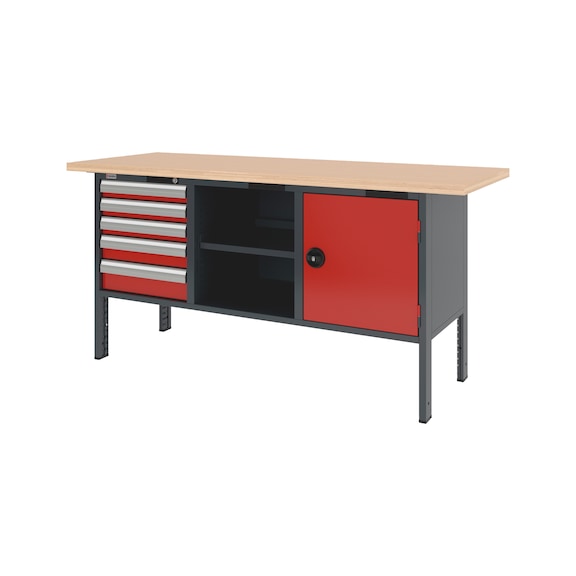

System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

Name: System cabinet workbench 2000 mm with 3 undercounter blocks 8.6
Brand: Würth
SKU: 5583237020

System cabinet workbench 2000 mm
CWB-SYSTEM-7DRWR-1WNGDR-2000-RAL3020

Art.-no. 5583237020

EAN 4065746576147

All versions

Similar products

Prices for customers after login

System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

Art.-no. 5583237020

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Stable and torsion-free construction with plenty of storage space for use in production and operation.

Robust base frame made of section tube 60x30 mm with a load capacity of up to 800 kg

Solid worktop ensures robust applications and long-lasting use

Undercounter blocks in system dimensions 8.6 ensure a robust base and can be flexibly supplemented with accessories and organisational elements within the system dimensions

Lock element with mechanical cylinder lock. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Optional addition with height adjustment kit for individual adjustment of the working height from 985 to 1120 mm, load capacity up to 400 kg

Optional extension to the mobile cabinet workbench with the moveable and lowerable module, load capacity up to 520 kg

An extensive range of accessories complements the workbench to create an individual workplace

Drawers in system dimensions 8.6: Aluminium handle strip in haptic design and upmarket design with labelling options, internal dimensions in system dimensions 8.6 to accommodate all foam and tray inserts as well as system boxes of the ORSY^® system, compartment rails and compartment dividers, non-slip mats and roller-mounted full-extension drawers with a 80 kg load capacity

Hinged doors in system dimensions 8.6: Single leaf hinged doors with reinforcement profile on the inside and three-point locking system and recessed handle with turning handle

Other optional interior features, such as shelves, inside drawers and pull-out trays, are available

All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Width x depth x working height	2000 x 750 x 955 mm
Material of worktop	Multiplex beech
Surface of the worktop	Transparent lacquered
Worktop thickness	40 mm
System dimensions	8.6
Lock type	Cylinder lock
Number of drawers	5 PCS
Drawer design	3 drawers, front height 90 mm, 1 drawer, front height 120 mm, 1 drawer, front height 150 mm
Pullout type	Full extension
Load capacity of drawer	80 kg
Number of doors	1 PCS
Door design	1 Single wing door H 540 mm
Number of shelves	2 PCS
Load capacity of shelf	50 kg
Colour of housing	Anthracite grey RAL 7016
Colour of front	Traffic red RAL 3020
Max. load capacity	800 kg

Additional accessory:

Product

Description

Quantity

Price
/PU

Mounting frame set For workbenches

FRM-WRKBNCH-(SET-1)-PERFWL-2000X450

Art.-no. 0957510102

Mounting frame with perforated panel for the clear storage of tools and small parts.

x 1 pcs

Mounting frame set For workbenches

FRM-WRKBNCH-(SET-2)-PERFWL-2000X800MM

Art.-no. 0957510104

Mounting frame with perforated panel for the clear storage of tools and small parts.

x 1 pcs

Mounting frame set 3 for workbenches

FRM-WRKBENCH-SET3-PERFWL/SHLF-2000X1270

Art.-no. 0957510106

Mounting frame with perforated panel and tray shelf for the custom design of workbenches for an ergonomic work space.

x 1 pcs

Mounting frame set 4 for workbenches

FRM-WRKBNCH-(SET 4)-2000X1270MM

Art.-no. 0957510108

Mounting frame with perforated panel, two tray shelves and boom with LED work lamp for the custom design of workbenches for an ergonomic work space.

x 1 pcs

Worktop support

WORKTOP-MAT-PVC-TRANSPARENT-2000X750X3

Art.-no. 0957515002

The PVC worktop cover protects the work surface and sensitive components from contamination and mechanical stress.

x 1 pcs

Worktop support

WRKTP-MAT-OIL-RESIS-PVC-TRANS-2000X750X3

Art.-no. 0957515022

The PVC worktop cover is oil- and petrol-resistant and protects the work surface and the components to be machined from contamination and mechanical stress

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H90-80KG-RAL7016

Art.-no. 5583130806

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H150-80KG-RAL7016

Art.-no. 5583130906

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Moveable and lowerable module For system cabinet workbench

CWB-MODUL-MOB-ADJ-2000-RAL7016

Art.-no. 5583138105

Enables mobile use without limiting the load on a stationary cabinet workbench

x 1 pcs

Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-BACK-2000MM

Art.-no. 5583138201

x 1 pcs

Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-SIDE-FED-12MM

Art.-no. 5583138202

x 1 pcs

Shelf For system hinged door cabinet

SHLF-WNGDRCAB-8.6-RAL7016

Art.-no. 5583140026

Stable construction with a load capacity of 50 or 100 kg depending on the system width

x 1 pcs

Pull-out tray For system hinged door cabinet

PULOUTTRY-WNGDRCAB-8.6-80KG-RAL7016

Art.-no. 5583140106

For easy and clear access to the contents of the cabinet

x 1 pcs

Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-8.6

Art.-no. 5583148050

For safe storage and protection of tools against slipping

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H60

Art.-no. 5583240000

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H60

Art.-no. 5583240001

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H114

Art.-no. 5583240002

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H114

Art.-no. 5583240003

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With system boxes for system dimensions 8.6

BOXSORT-DRWRCAB8.6-8FOLD-H114

Art.-no. 5583240023

System box made of plastic for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs
