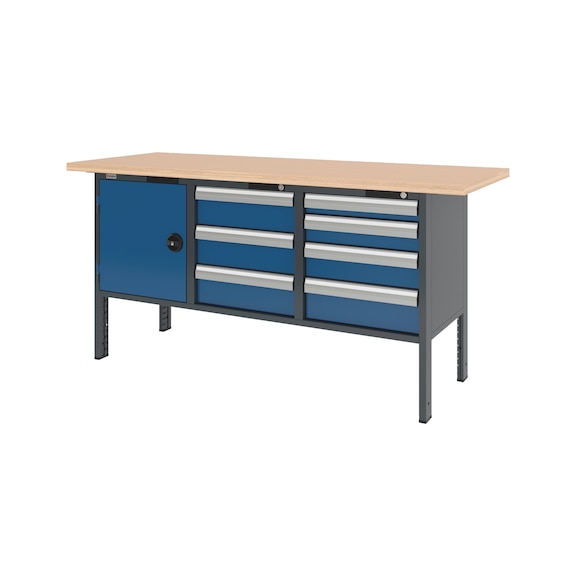

System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

Name: System cabinet workbench 2000 mm with 3 undercounter blocks 8.6
Brand: Würth
SKU: 5583237016

System cabinet workbench 2000 mm
CWB-SYSTEM-7DRWR-1WNGDR-2000-RAL5010

Art.-no. 5583237016

EAN 4065746576130

All versions

Similar products

Prices for customers after login

System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

Art.-no. 5583237016

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Stable and torsion-free construction with plenty of storage space for use in production and operation.

Robust base frame made of section tube 60x30 mm with a load capacity of up to 800 kg

Solid worktop ensures robust applications and long-lasting use

Undercounter blocks in system dimensions 8.6 ensure a robust base and can be flexibly supplemented with accessories and organisational elements within the system dimensions

Lock element with mechanical cylinder lock. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Optional addition with height adjustment kit for individual adjustment of the working height from 985 to 1120 mm, load capacity up to 400 kg

Optional extension to the mobile cabinet workbench with the moveable and lowerable module, load capacity up to 520 kg

An extensive range of accessories complements the workbench to create an individual workplace

Drawers in system dimensions 8.6: Aluminium handle strip in haptic design and upmarket design with labelling options, internal dimensions in system dimensions 8.6 to accommodate all foam and tray inserts as well as system boxes of the ORSY^® system, compartment rails and compartment dividers, non-slip mats and roller-mounted full-extension drawers with a 80 kg load capacity

Hinged doors in system dimensions 8.6: Single leaf hinged doors with reinforcement profile on the inside and three-point locking system and recessed handle with turning handle

Other optional interior features, such as shelves, inside drawers and pull-out trays, are available

All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Width x depth x working height	2000 x 750 x 955 mm
Material of worktop	Multiplex beech
Surface of the worktop	Transparent lacquered
Worktop thickness	40 mm
System dimensions	8.6
Lock type	Cylinder lock
Number of drawers	7 PCS
Drawer design	1 drawer, front height 90 mm 1 drawer, front height 120 mm 1 drawer, front height 150 mm 4 drawers, front height 180 mm
Pullout type	Full extension
Load capacity of drawer	80 kg
Number of doors	1 PCS
Door design	1 Single wing door H 540 mm
Number of shelves	1 PCS
Load capacity of shelf	50 kg
Colour of housing	Anthracite grey RAL 7016
Colour of front	Gentian blue RAL 5010
Max. load capacity	800 kg
