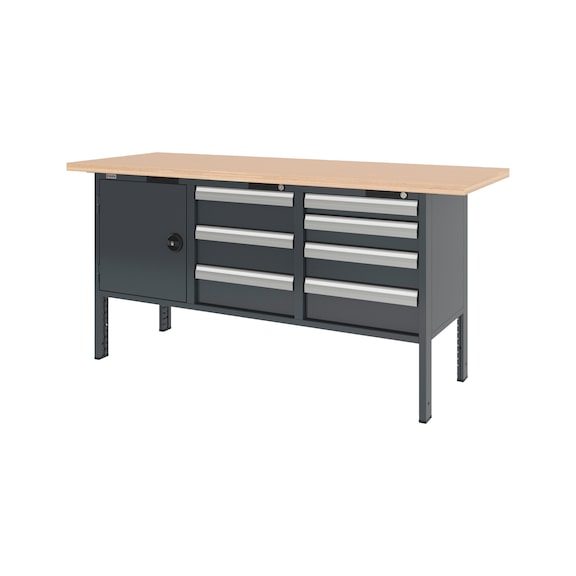

System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

System cabinet workbench 2000 mm
CWB-SYSTEM-7DRWR-1WNGDR-2000-RAL7016

Art.-no. 5583237018
EAN 4065746576161

Prices for customers after login
System cabinet workbench 2000 mm with 3 undercounter blocks 8.6

Art.-no. 5583237018

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Stable and torsion-free construction with plenty of storage space for use in production and operation.
  • Robust base frame made of section tube 60x30 mm with a load capacity of up to 800 kg

  • Solid worktop ensures robust applications and long-lasting use

  • Undercounter blocks in system dimensions 8.6 ensure a robust base and can be flexibly supplemented with accessories and organisational elements within the system dimensions

  • Lock element with mechanical cylinder lock. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

  • The high-quality microstructure powder coating results in a homogeneous and elegant surface

  • Optional addition with height adjustment kit for individual adjustment of the working height from 985 to 1120 mm, load capacity up to 400 kg

  • Optional extension to the mobile cabinet workbench with the moveable and lowerable module, load capacity up to 520 kg

  • An extensive range of accessories complements the workbench to create an individual workplace

  • Drawers in system dimensions 8.6: Aluminium handle strip in haptic design and upmarket design with labelling options, internal dimensions in system dimensions 8.6 to accommodate all foam and tray inserts as well as system boxes of the ORSY® system, compartment rails and compartment dividers, non-slip mats and roller-mounted full-extension drawers with a 80 kg load capacity

  • Hinged doors in system dimensions 8.6: Single leaf hinged doors with reinforcement profile on the inside and three-point locking system and recessed handle with turning handle

  • Other optional interior features, such as shelves, inside drawers and pull-out trays, are available

  • All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Width x depth x working height

2000 x 750 x 955 mm

Material of worktop

Multiplex beech

Surface of the worktop

Transparent lacquered

Worktop thickness

40 mm

System dimensions

8.6

Lock type

Cylinder lock

Number of drawers

7 PCS

Drawer design

1 drawer, front height 90 mm
1 drawer, front height 120 mm
1 drawer, front height 150 mm
4 drawers, front height 180 mm

Pullout type

Full extension

Load capacity of drawer

80 kg

Number of doors

1 PCS

Door design

1 Single wing door H 540 mm

Number of shelves

1 PCS

Load capacity of shelf

50 kg

Colour of housing

Anthracite grey RAL 7016

Colour of front

Anthracite grey RAL 7016

Max. load capacity

800 kg

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Mounting frame set For workbenches

FRM-WRKBNCH-(SET-1)-PERFWL-2000X450

Mounting frame with perforated panel for the clear storage of tools and small parts.
x 1 pcs
Mounting frame set For workbenches

FRM-WRKBNCH-(SET-2)-PERFWL-2000X800MM

Mounting frame with perforated panel for the clear storage of tools and small parts.
x 1 pcs
Mounting frame set 3 for workbenches

FRM-WRKBENCH-SET3-PERFWL/SHLF-2000X1270

Mounting frame with perforated panel and tray shelf for the custom design of workbenches for an ergonomic work space.
x 1 pcs
Mounting frame set 4 for workbenches

FRM-WRKBNCH-(SET 4)-2000X1270MM

Mounting frame with perforated panel, two tray shelves and boom with LED work lamp for the custom design of workbenches for an ergonomic work space.
x 1 pcs
Worktop support

WORKTOP-MAT-PVC-TRANSPARENT-2000X750X3

The PVC worktop cover protects the work surface and sensitive components from contamination and mechanical stress.
x 1 pcs
Worktop support

WRKTP-MAT-OIL-RESIS-PVC-TRANS-2000X750X3

The PVC worktop cover is oil and petrol-resistant and protects the work surface and the components to be machined from contamination and mechanical stress.
x 1 pcs
Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H90-80KG-RAL7016

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity
x 1 pcs
Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H150-80KG-RAL7016

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity
x 1 pcs
Moveable and lowerable module For system cabinet workbench

CWB-MODUL-MOB-ADJ-2000-RAL7016

Enables mobile use without limiting the load on a stationary cabinet workbench
x 1 pcs
Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-BACK-2000MM

x 1 pcs
Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-SIDE-FED-12MM

x 1 pcs
Shelf For system hinged door cabinet

SHLF-WNGDRCAB-8.6-RAL7016

Stable construction with a load capacity of 50 or 100 kg depending on the system width
x 1 pcs
Pull-out tray For system hinged door cabinet

PULOUTTRY-WNGDRCAB-8.6-80KG-RAL7016

For easy and clear access to the contents of the cabinet
x 1 pcs
Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-8.6

For safe storage and protection of tools against slipping
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H114

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H114

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With system boxes for system dimensions 8.6

BOXSORT-DRWRCAB8.6-8FOLD-H114

System box made of plastic for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
