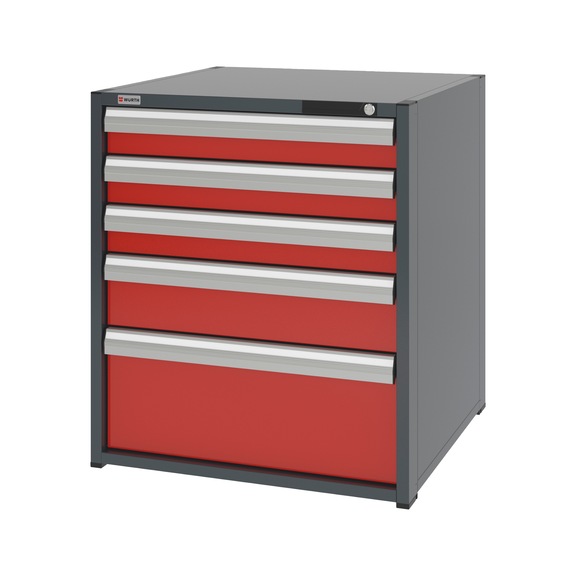

System drawer cabinet 12.8: 805x770 mm

Name: System drawer cabinet 12.8: 805x770 mm
Brand: Würth
SKU: 5583203060

System drawer cabinet 12.8/805x770mm
DRWRCAB-12.8-H915-5DRWR-RAL3020

Art.-no. 5583203060

EAN 4065746477550

All versions

Similar products

Prices for customers after login

System drawer cabinet 12.8: 805x770 mm

Art.-no. 5583203060

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Stable and torsion-free construction with a load capacity of up to 2 tonnes for heavy-duty use in production, storage and operation

Tailor-made combinations and flexible, simple planning

Uniform system dimensions and system components across all product groups.

Drawers and organisational elements can be used in cabinets with the respective system dimensions.

Drawer cabinet frame

Safety drawer lock prevents several drawers from being opened at the same time and thereby prevents the risk of tipping

Lock element with mechanical cylinder lock and labelling field. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

Corner plastic covers serve as glide runners on the cabinet base, the painted cabinet base is not positioned directly on the floor. Instead of the corner plastic covers, special fasteners can be used in the cabinet cover for stacking the cabinet housings

Punch holes in the lid and sidewalls allow accessories such as anti-roll-off edging to be easily mounted or multiple cabinet housings to be screwed on.

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Drawers

Aluminium handle strip in high-quality haptics and upmarket design with labelling options

Internal dimensions in line with system dimensions to accommodate all foam and tray inserts as well as system boxes from ORSY^® System World, compartment rails and compartment dividers, non-slip mats

Roller-mounted full-extension slides with a load capacity of 80 kg, optionally with a load capacity of 150 kg

Other comprehensive system accessories are available

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

System dimensions	12.8
Height	915 mm
Number of drawers	5 PCS
Drawer design	3 drawers, front height 120 mm, 1 drawer, front height 180 mm, 1 drawer, front height 300 mm
Load capacity of drawer	80 kg
Pullout type	Full extension
Lock type	Cylinder lock
Colour of housing	Anthracite grey RAL 7016
Colour of front	Traffic red RAL 3020
Width	805 mm
Depth	770 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Cabinet base for system cabinet

CABBSE-12.8-RAL7016

Art.-no. 5583103500

Stable frame construction to raise the cabinet housing height including levelling foot set for compensating ground unevenness

x 1 pcs

Fork lift-compatible base for system cabinet

LFTBSE-CAB-12.8-RAL7016

Art.-no. 5583103501

Sturdy frame construction with removable panels, for easy moving of the loaded cabinet with the pallet truck

x 1 pcs

Anti-roll-off edging For cabinet covers of system cabinets

UNROLLRIM-CAB-12.8-RAL7016

Art.-no. 5583103502

Three-sided chamfered sheet steel anti-roll-off edging prevents objects rolling away from the cabinet cover

x 1 pcs

Cover panel, plastic-coated For cabinet covers of system cabinets

COVPAN-CAB-12.8-PLA-COAT

Art.-no. 5583103503

Ideal as a storage area for tools and components and for protecting the cabinet cover

x 1 pcs

Multiplex cover panel For cabinet covers of system cabinets

COVPAN-CAB-12.8-MULTIPLEX

Art.-no. 5583103504

Ideal as a storage area for tools and components and for protecting the cabinet cover

x 1 pcs

Levelling foot set for system cabinet and system workbench

LEVLFT-SET-CAB-WRKBNCH-4PCS

Art.-no. 5583108000

Set comprises 4 levelling feet for compensating ground unevenness

x 1 pcs

Connection plug set For system cabinet

CON-PLG-SET-CAB

Art.-no. 5583108001

Using the connection plug set, stacked system cabinets can be securely connected to each other on the same base dimension.

x 1 pcs

Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-12.8

Art.-no. 5583148053

For safe storage and protection of tools against slipping

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 12.8

DEVDRSORT-DRWR12.8-7FOLD-H60

Art.-no. 5583243000

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 12.8

DEVDRSORT-DRWR12.8-10FOLD-H60

Art.-no. 5583243001

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 12.8

DEVDRSORT-DRWR12.8-7FOLD-H114

Art.-no. 5583243002

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 12.8

DEVDRSORT-DRWR12.8-10FOLD-H114

Art.-no. 5583243003

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs
