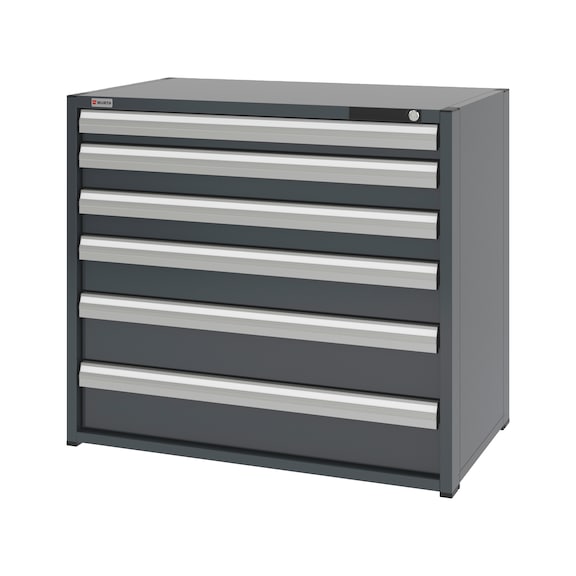

System drawer cabinet 16.6: 1037x603 mm

System drawer cabinet 16.6/1037x603mm
DRWRCAB-16.6-H915-6DRWR-RAL7016

Art.-no. 5583204068
EAN 4065746477840

Prices for customers after login
System drawer cabinet 16.6: 1037x603 mm

Art.-no. 5583204068

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Stable and torsion-free construction with a load capacity of up to 2 tonnes for heavy-duty use in production, storage and operation

Tailor-made combinations and flexible, simple planning


  • Uniform system dimensions and system components across all product groups.

  • Drawers and organisational elements can be used in cabinets with the respective system dimensions.


Drawer cabinet frame


  • Stable and torsion-free construction with a load capacity of up to 2 tonnes

  • Safety drawer lock prevents several drawers from being opened at the same time and thereby prevents the risk of tipping

  • Lock element with mechanical cylinder lock and labelling field. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

  • Corner plastic covers serve as glide runners on the cabinet base, the painted cabinet base is not positioned directly on the floor. Instead of the corner plastic covers, special fasteners can be used in the cabinet cover for stacking the cabinet housings

  • Punch holes in the lid and sidewalls allow accessories such as anti-roll-off edging to be easily mounted or multiple cabinet housings to be screwed on.

  • The high-quality microstructure powder coating results in a homogeneous and elegant surface


Drawers


  • Aluminium handle strip in high-quality haptics and upmarket design with labelling options

  • Internal dimensions in line with system dimensions to accommodate all foam and tray inserts as well as system boxes from ORSY® System World, compartment rails and compartment dividers, non-slip mats

  • Roller-mounted full-extension slides with a load capacity of 80 kg, optionally with a load capacity of 150 kg


Other comprehensive system accessories are available

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

System dimensions

16.6

Height

915 mm

Number of drawers

6 PCS

Drawer design

1 drawer, front height 90 mm
2 drawers, front height 120 mm
1 drawer, front height 150 mm
2 drawers, front height 180 mm

Load capacity of drawer

80 kg

Pullout type

Full extension

Lock type

Cylinder lock

Colour of housing

Anthracite grey RAL 7016

Colour of front

Anthracite grey RAL 7016

Width

1037 mm

Depth

603 mm

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Cabinet base for system cabinet

CABBSE-16.6-RAL7016

Stable frame construction to raise the cabinet housing height including levelling foot set for compensating ground unevenness
x 1 pcs
Fork lift-compatible base for system cabinet

LFTBSE-CAB-16.6-RAL7016

Sturdy frame construction with removable panels, for easy moving of the loaded cabinet with the pallet truck
x 1 pcs
Anti-roll-off edging For cabinet covers of system cabinets

UNROLLRIM-CAB-16.6-RAL7016

Three-sided chamfered sheet steel anti-roll-off edging prevents objects rolling away from the cabinet cover
x 1 pcs
Cover panel, plastic-coated For cabinet covers of system cabinets

COVPAN-CAB-16.6-PLA-COAT

Ideal as a storage area for tools and components and for protecting the cabinet cover
x 1 pcs
Multiplex cover panel For cabinet covers of system cabinets

COVPAN-CAB-16.6-MULTIPLEX

Ideal as a storage area for tools and components and for protecting the cabinet cover
x 1 pcs
Travel package for system cabinet

MOBPACK-CAB-16.6-RAL7016

With the travel package set, stationary cabinets can also be retrofitted into a mobile cabinet.
x 1 pcs
Levelling foot set for system cabinet and system workbench

LEVLFT-SET-CAB-WRKBNCH-4PCS

Set comprises 4 levelling feet for compensating ground unevenness
x 1 pcs
Connection plug set For system cabinet

CON-PLG-SET-CAB

Using the connection plug set, stacked system cabinets can be securely connected to each other on the same base dimension.
x 1 pcs
Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-16.6

For safe storage and protection of tools against slipping
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.6

DEVDRSORT-DRWR16.6-10FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.6

DEVDRSORT-DRWR16.6-16FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.6

DEVDRSORT-DRWR16.6-10FOLD-H114

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.6

DEVDRSORT-DRWR16.6-16FOLD-H114

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
