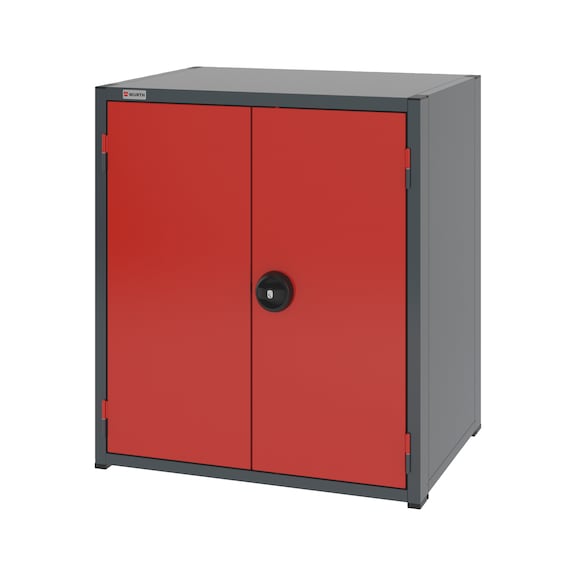

System wing door cabinet 12.6 805x603 mm

Name: System wing door cabinet 12.6 805x603 mm
Brand: Würth
SKU: 5583212060

System wing door cabinet 12.6/805x603mm
WNGDRCAB-12.6-H915-2SHLF-RAL3020

Art.-no. 5583212060

EAN 4065746474979

All versions

Similar products

Prices for customers after login

System wing door cabinet 12.6 805x603 mm

Art.-no. 5583212060

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Stable and torsion-free construction with a load capacity of up to 2 tonnes for heavy-duty use in production, storage and operation

Tailor-made combinations and flexible, simple planning

Uniform system dimensions and system components across all product groups.

Shelves, inside drawers, pull-out trays and organisational elements can be used in cabinets with the respective system dimensions.

Hinged door cabinet housing

Corner plastic covers serve as glide runners on the cabinet base, the painted cabinet base is not positioned directly on the floor. Instead of the corner plastic covers, special fasteners can be used in the cabinet cover for stacking the cabinet housings

Punch holes in the lid and sidewalls allow accessories such as anti-roll-off edging to be easily mounted or multiple cabinet housings to be screwed on.

Depending on the height of the frame, the number of painted shelves may vary. Other optional interior features are available, such as inside drawers and pull-out trays.

All interior features can be adjusted, converted and retrofitted in a grid size of 30 mm.

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Hinged doors

Twin-leaf hinged doors with reinforcement profile on the inside and three-point locking system

Recessed turning handle and mechanical cylinder lock. Design of individual locking circuits, locking systems or electronic locks possible across all product groups.

Optional interior features for hinged door cabinets 12.6

Painted shelves with a load capacity of 100 kg

Inside drawers in line with system dimensions and full-extension slides with a load capacity of 80 kg

Pull-out trays with full-extension slides with a load capacity of 80 kg

Other comprehensive system accessories are available

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

System dimensions	12.6
Height	915 mm
Door design	Double wing doors
Number of shelves	2 PCS
Load capacity of shelf	100 kg
Lock type	Cylinder lock
Colour of housing	Anthracite grey RAL 7016
Colour of front	Traffic red RAL 3020
Width	805 mm
Depth	603 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Cabinet base for system cabinet

CABBSE-12.6-RAL7016

Art.-no. 5583102500

Stable frame construction to raise the cabinet housing height including levelling foot set for compensating ground unevenness

x 1 pcs

Fork lift-compatible base for system cabinet

LFTBSE-CAB-12.6-RAL7016

Art.-no. 5583102501

Sturdy frame construction with removable panels, for easy moving of the loaded cabinet with the pallet truck

x 1 pcs

Anti-roll-off edging For cabinet covers of system cabinets

UNROLLRIM-CAB-12.6-RAL7016

Art.-no. 5583102502

Three-sided chamfered sheet steel anti-roll-off edging prevents objects rolling away from the cabinet cover

x 1 pcs

Cover panel, plastic-coated For cabinet covers of system cabinets

COVPAN-CAB-12.6-PLA-COAT

Art.-no. 5583102503

Ideal as a storage area for tools and components and for protecting the cabinet cover

x 1 pcs

Multiplex cover panel For cabinet covers of system cabinets

COVPAN-CAB-12.6-MULTIPLEX

Art.-no. 5583102504

Ideal as a storage area for tools and components and for protecting the cabinet cover

x 1 pcs

Travel package for system cabinet

MOBPACK-CAB-12.6-RAL7016

Art.-no. 5583102505

With the travel package set, stationary cabinets can also be retrofitted into a mobile cabinet.

x 1 pcs

Levelling foot set for system cabinet and system workbench

LEVLFT-SET-CAB-WRKBNCH-4PCS

Art.-no. 5583108000

Set comprises 4 levelling feet for compensating ground unevenness

x 1 pcs

Connection plug set For system cabinet

CON-PLG-SET-CAB

Art.-no. 5583108001

Using the connection plug set, stacked system cabinets can be securely connected to each other on the same base dimension.

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-12.6-H90-80KG-RAL7016

Art.-no. 5583132806

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-12.6-H150-80KG-RAL7016

Art.-no. 5583132906

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Shelf For system hinged door cabinet

SHLF-WNGDRCAB-12.6-RAL7016

Art.-no. 5583142026

Stable construction with a load capacity of 50 or 100 kg depending on the system width

x 1 pcs

Pull-out tray For system hinged door cabinet

PULOUTTRY-WNGDRCAB-12.6-80KG-RAL7016

Art.-no. 5583142106

For easy and clear access to the contents of the cabinet

x 1 pcs
