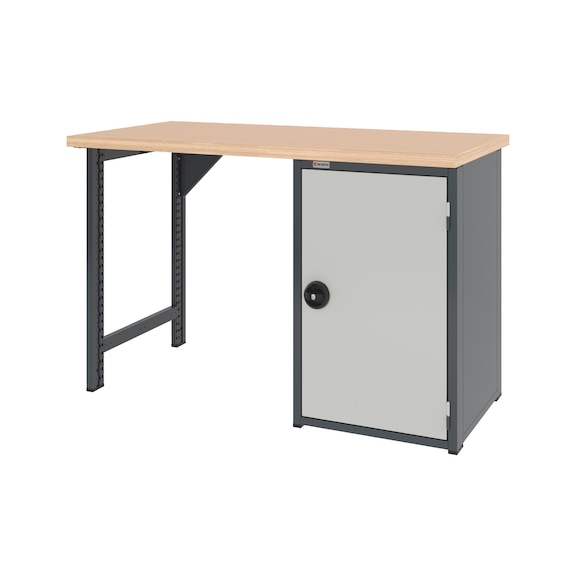

System workbench 1500 mm with 1 workbench foot and hinged door undercounter cabinet 8.6

Name: System workbench 1500 mm with 1 workbench foot and hinged door undercounter cabinet 8.6
Brand: Würth
SKU: 5583226252

System workbench 1500 mm 1 feet/hinged door cabinet
WRKBNCH-1LEG-WNGDRCAB-1500-H955-R7035

Art.-no. 5583226252

EAN 4065746479332

All versions

Similar products

Prices for customers after login

System workbench 1500 mm with 1 workbench foot and hinged door undercounter cabinet 8.6

Art.-no. 5583226252

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Modular system workbench with a wide range of applications for daily use

Even load capacity up to 800 kg

Solid worktop ensures robust applications and long-lasting use

The fixed workbench feet made of section tube 60x30 mm and the undercounter cabinet 8.6 in two heights offer the choice of the suitable working height with high stability

The system cabinet 8.6 can be flexibly fitted with accessories and organisational elements within the system dimension

An extensive range of accessories complements the workbench to create an individual workplace

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Hinged door cabinet 8.6: Single-leaf with reinforcement profile on the inside and recessed handle with turning handle and mechanical cylinder lock. All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Width x depth x working height	1500 x 750 x 955 mm
Material of worktop	Multiplex beech
Surface of the worktop	Transparent lacquered
Worktop thickness	40 mm
System dimensions	8.6
Lock type	Cylinder lock
Height of cabinet	915 mm
Door design	Single wing doors
Door height	840 mm
Number of shelves	2 PCS
Load capacity of shelf	50 kg
Colour of housing	Anthracite grey RAL 7016
Colour of front	Light grey RAL 7035
Max. load capacity	800 kg
