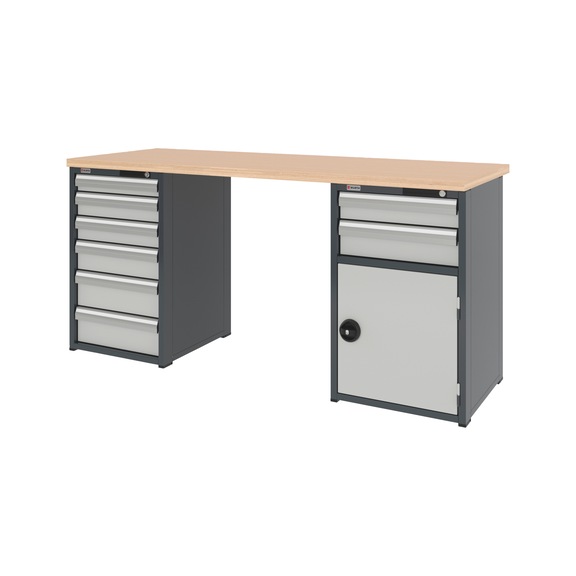

System workbench 2000 mm with 1 drawer undercounter cabinet 8.6 and 1 combination undercounter cabinet 8.6

Name: System workbench 2000 mm with 1 drawer undercounter cabinet 8.6 and 1 combination undercounter cabinet 8.6
Brand: Würth
SKU: 5583227302

System workbench 2000 mm drawer/combi cabinet
WRKBNCH-2CAB-8DRWR1WD-2000-H955-RAL7035

Art.-no. 5583227302

EAN 4065746480680

All versions

Similar products

Prices for customers after login

System workbench 2000 mm with 1 drawer undercounter cabinet 8.6 and 1 combination undercounter cabinet 8.6

Art.-no. 5583227302

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Modular system workbench with a wide range of applications for daily use

Even load capacity up to 800 kg

Solid worktop ensures robust applications and long-lasting use

The undercounter cabinets 8.6 in two heights offer the choice of the suitable working height with high stability

The system cabinets 8.6 can be flexibly fitted with accessories and organisational elements within the system dimension

An extensive range of accessories complements the workbench to create an individual workplace

The high-quality microstructure powder coating results in a homogeneous and elegant surface

Drawer cabinet 8.6: Lock element with mechanical cylinder lock and labelling field, aluminium handle strip in haptic design and upmarket design with labelling options and roller-mounted full-extension slides with 80 kg load capacity

Combination cabinet 8.6: The combination of drawers and hinged door cabinet offers the benefits of both cabinet types

Drawer block: Lock element with mechanical cylinder lock and labelling field, aluminium handle strip in haptic design and upmarket design with labelling options and roller-mounted full-extension slides with 80 kg load capacity

Hinged door block: Single-leaf with reinforcement profile on the inside and recessed handle with turning handle and mechanical cylinder lock. All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Width x depth x working height	2000 x 750 x 955 mm
Material of worktop	Multiplex beech
Surface of the worktop	Transparent lacquered
Worktop thickness	40 mm
System dimensions	8.6
Lock type	Cylinder lock
Height of cabinet	915 mm
Number of drawers	8 PCS
Drawer design	1 drawer, front height 90 mm, 3 drawers, front height 120 mm, 2 drawers, front height 150 mm, 2 drawers, front height 180 mm
Pullout type	Full extension
Load capacity of drawer	80 kg
Door design	Single wing doors
Door height	540 mm
Number of shelves	1 PCS
Load capacity of shelf	50 kg
Colour of housing	Anthracite grey RAL 7016
Colour of front	Light grey RAL 7035
Max. load capacity	800 kg

Additional accessory:

Product

Description

Quantity

Price
/PU

Mounting frame set For workbenches

FRM-WRKBNCH-(SET-1)-PERFWL-2000X450

Art.-no. 0957510102

Mounting frame with perforated panel for the clear storage of tools and small parts.

x 1 pcs

Mounting frame set For workbenches

FRM-WRKBNCH-(SET-2)-PERFWL-2000X800MM

Art.-no. 0957510104

Mounting frame with perforated panel for the clear storage of tools and small parts.

x 1 pcs

Mounting frame set 3 for workbenches

FRM-WRKBENCH-SET3-PERFWL/SHLF-2000X1270

Art.-no. 0957510106

Mounting frame with perforated panel and tray shelf for the custom design of workbenches for an ergonomic work space.

x 1 pcs

Mounting frame set 4 for workbenches

FRM-WRKBNCH-(SET 4)-2000X1270MM

Art.-no. 0957510108

Mounting frame with perforated panel, two tray shelves and boom with LED work lamp for the custom design of workbenches for an ergonomic work space.

x 1 pcs

Worktop support

WORKTOP-MAT-PVC-TRANSPARENT-2000X750X3

Art.-no. 0957515002

The PVC worktop cover protects the work surface and sensitive components from contamination and mechanical stress.

x 1 pcs

Worktop support

WRKTP-MAT-OIL-RESIS-PVC-TRANS-2000X750X3

Art.-no. 0957515022

The PVC worktop cover is oil- and petrol-resistant and protects the work surface and the components to be machined from contamination and mechanical stress

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H90-80KG-RAL7016

Art.-no. 5583130806

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H150-80KG-RAL7016

Art.-no. 5583130906

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity

x 1 pcs

Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-BACK-2000MM

Art.-no. 5583138201

x 1 pcs

Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-SIDE-FED-12MM

Art.-no. 5583138202

x 1 pcs

Shelf For system hinged door cabinet

SHLF-WNGDRCAB-8.6-RAL7016

Art.-no. 5583140026

Stable construction with a load capacity of 50 or 100 kg depending on the system width

x 1 pcs

Pull-out tray For system hinged door cabinet

PULOUTTRY-WNGDRCAB-8.6-80KG-RAL7016

Art.-no. 5583140106

For easy and clear access to the contents of the cabinet

x 1 pcs

Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-8.6

Art.-no. 5583148050

For safe storage and protection of tools against slipping

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H60

Art.-no. 5583240000

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H60

Art.-no. 5583240001

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H114

Art.-no. 5583240002

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H114

Art.-no. 5583240003

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs

Divider assortment With system boxes for system dimensions 8.6

BOXSORT-DRWRCAB8.6-8FOLD-H114

Art.-no. 5583240023

System box made of plastic for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.

x 1 pcs
