Welcome to Würth Aerospace Solutions For trade customers only

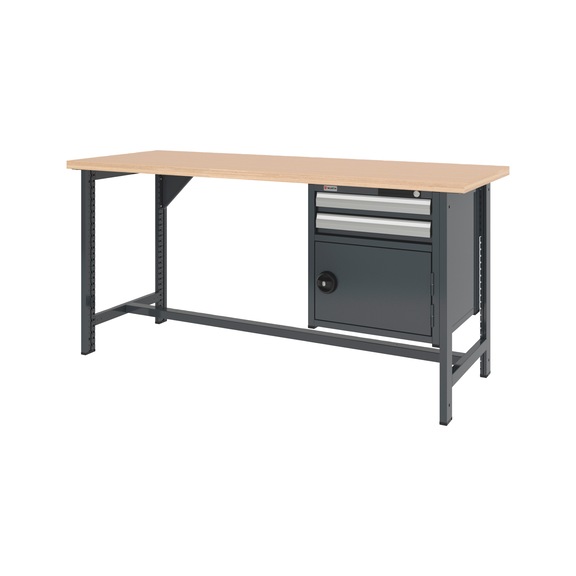

System workbench 2000 mm with 2 fixed workbench feet and combination wall-mounted cabinet 8.6

System workbench 2000 mm 2 feet/combi cabinet
WRKBNCH-2LEG-COMBICAB-2000-H955-R7016

Art.-no. 5583227213
EAN 4065746479592

Prices for customers after login
System workbench 2000 mm with 2 fixed workbench feet and combination wall-mounted cabinet 8.6

Art.-no. 5583227213

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Modular system workbench with a wide range of applications for daily use
  • Even load capacity up to 800 kg

  • Solid worktop ensures robust applications and long-lasting use

  • Fixed workbench feet made of section tube 60x30 mm in two heights offer the choice of the suitable working height with high stability

  • The system wall-mounted cabinet 8.6 can be flexibly fitted with accessories and organisational elements within the system dimension

  • An extensive range of accessories complements the workbench to create an individual workplace

  • The high-quality microstructure powder coating results in a homogeneous and elegant surface

  • Combination cabinet 8.6: The combination of drawers and hinged door cabinet offers the benefits of both cabinet types

  • Drawer block: Lock element with mechanical cylinder lock and labelling field, aluminium handle strip in haptic design and upmarket design with labelling options and roller-mounted full-extension slides with 80 kg load capacity

  • Hinged door block: Single-leaf with reinforcement profile on the inside and recessed handle with turning handle and mechanical cylinder lock. All interior elements can be adjusted, converted and retrofitted in a grid size of 30 mm.
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Width x depth x working height

2000 x 750 x 955 mm

Material of worktop

Multiplex beech

Surface of the worktop

Transparent lacquered

Worktop thickness

40 mm

System dimensions

8.6

Lock type

Cylinder lock

Height of cabinet

615 mm

Number of drawers

2 PCS

Drawer design

2 drawers, front height 90 mm

Pullout type

Full extension

Load capacity of drawer

80 kg

Door design

Single wing doors

Door height

330 mm

Colour of housing

Anthracite grey RAL 7016

Colour of front

Anthracite grey RAL 7016

Max. load capacity

800 kg

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Mounting frame set For workbenches

FRM-WRKBNCH-(SET-1)-PERFWL-2000X450

Mounting frame with perforated panel for the clear storage of tools and small parts.
x 1 pcs
Mounting frame set For workbenches

FRM-WRKBNCH-(SET-2)-PERFWL-2000X800MM

Mounting frame with perforated panel for the clear storage of tools and small parts.
x 1 pcs
Mounting frame set 3 for workbenches

FRM-WRKBENCH-SET3-PERFWL/SHLF-2000X1270

Mounting frame with perforated panel and tray shelf for the custom design of workbenches for an ergonomic work space.
x 1 pcs
Mounting frame set 4 for workbenches

FRM-WRKBNCH-(SET 4)-2000X1270MM

Mounting frame with perforated panel, two tray shelves and boom with LED work lamp for the custom design of workbenches for an ergonomic work space.
x 1 pcs
Worktop support

WORKTOP-MAT-PVC-TRANSPARENT-2000X750X3

The PVC worktop cover protects the work surface and sensitive components from contamination and mechanical stress.
x 1 pcs
Worktop support

WRKTP-MAT-OIL-RESIS-PVC-TRANS-2000X750X3

The PVC worktop cover is oil- and petrol-resistant and protects the work surface and the components to be machined from contamination and mechanical stress
x 1 pcs
Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H90-80KG-RAL7016

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity
x 1 pcs
Inside drawer For system hinged door cabinet

INDRWR-WNGDRCAB-8.6-H150-80KG-RAL7016

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity
x 1 pcs
Joint plate for system workbench foot

KNOT-PLATE-WRKBNCH-RAL7016

Additional stiffening of the workbench foot on system workbenches under heavy load and during heavy work
x 1 pcs
Tray shelf

TRYSHLF-FULL-2000-WRKBNCH-RAL7016

Ideal as an additional storage option beneath the work surface
x 1 pcs
Tray shelf

TRYSHLF-HALF-2000-WRKBNCH-RAL7016

Ideal as an additional storage option beneath the work surface
x 1 pcs
Retrofit set Height-adjustable and mobile

RETFITSET-MOB-WRKBNCH-RAL7016

For mobile workbench height adjustment for system workbenches
x 1 pcs
Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-BACK-2000MM

x 1 pcs
Worktop closure For system workbenches and system cabinet workbenches

WRKTPUPSTAND-WRKBNCH-MPX-SIDE-FED-12MM

x 1 pcs
Retrofit set For height adjustment of the workbench

RETFITKIT-ADJ-WRKBNCH-RAL7016

For subsequent extension of fixed workbench feet
x 1 pcs
Shelf For system hinged door cabinet

SHLF-WNGDRCAB-8.6-RAL7016

Stable construction with a load capacity of 50 or 100 kg depending on the system width
x 1 pcs
Pull-out tray For system hinged door cabinet

PULOUTTRY-WNGDRCAB-8.6-80KG-RAL7016

For easy and clear access to the contents of the cabinet
x 1 pcs
Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-8.6

For safe storage and protection of tools against slipping
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-5FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 8.6

DEVDRSORT-DRWR8.6-8FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
