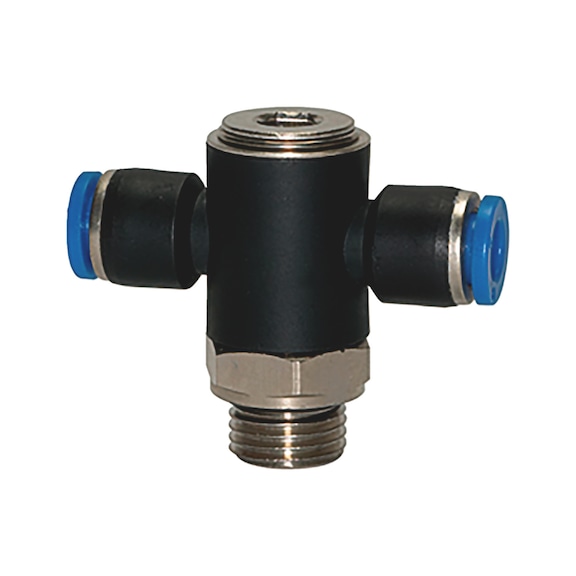

T-shaped push-in fitting with hexagon socket

T-shaped push-in fitting hexagon socket G thread
PSHINFITT-T-ROT-PLA-HS6-ET-G1/4-PIP-10

Art.-no. 4981113152
EAN 4099618229879

Prices for customers after login
T-shaped push-in fitting with hexagon socket

Art.-no. 4981113152

Prices for customers after login
Quantity
PU
x 10 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Can be rotated 360°, with cylindrical thread and o-ring (NBR)
The push-in fitting can be used in conjunction with plastic hoses and plastic pipes. Simple release and push-in behaviour for fast and safe installation. A wide range of applications and good durability and abrasion resistance thanks to the NBR sealing ring.
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area
  • Compressed air systems

  • Automation technology

  • Automotive industry

  • Packaging industry

Material

Plastic / metal

Material of gasket

Nitrile butadiene rubber (NBR)

Material of screwing thread

Brass

Surface of the screwing thread

Nickel plated

Design

360° rotatable
T-connector

Form

T

Drive type

Hexagon socket

Min./max. working pressure

-0.95-10 bar

Min./max. operating temperature

-20 to 80 °C

Thread type x nominal diameter (d1)

G1/4

Suitable for hose external diameter (Fs)

10 mm

Length (l1)

37.5 mm

Thread length (lg)

6.5 mm

Outer diameter (d2)

17.8 mm

Length 3 (l3)

20.7 mm

Length 2 (l2)

59.6 mm

Width across flats (s1)

17 mm

Internal drive (s1)

HS6
