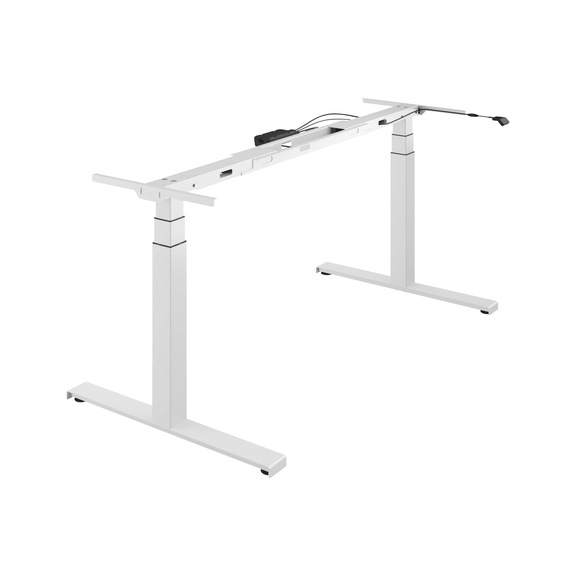

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 1

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 2

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 3

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 4

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 5

TMQ70/3 table frame - TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH - 6

TMQ70/3 table frame

Name: TMQ70/3 table frame
Brand: Würth
SKU: 0683904002

TBLFRM-TMQ70/3-WHITE-UP-DOWN-SWITCH

Art.-no. 0683904002

EAN 4062856623211

All versions

Similar products

Individual price display after login

TMQ70/3 table frame

Art.-no. 0683904002

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Table frame with electrical height adjustment for ergonomic workplaces with tool-free attachment of the columns

Easy handling

The 2-column lift ensures maximum stability while the crossbeam is in 3 parts for adaptation to a wide range of table widths, allowing a high degree of flexibility.

The 230 V electrical drive and control unit is ready to be connected and used immediately thanks to its 2 metres mains cable terminating in a Euro plug.

Can be optionally controlled using up/down switch or 4-way memory switch with height indicator. Display switches off automatically after 7 seconds.

Built-in collision detection for optimal safety - table stops immediately and changes direction if it encounters resistance.

Quick and tool-free installation of the columns by pushing into the panel frame and clicking into place to secure.

The frame meets the requirements of the pendulum impact test in accordance with DIN 527.

Scope of delivery

First pack contains 1 x parts for crossbeam, depending on set 1 x switch, 1 x control with power cable, 1 x bag with fastening material.

Second pack contains 2 x columns with motor and desktop frame, 2 x foot stabilisers, 4 x adjustable feet, 1 x operating instructions.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Dynamic load capacity	100 kg
Static load capacity	200 kg
Min./max. height adjustment	621-1281 mm
Min./max. width adjustment	1100-1700 mm
Min. nominal voltage	220 V/AC
Max. nominal voltage	240 V/AC
Max. power input (standby)	0.1 W
Number of motors	2 PCS
Stroke speed	43 mm/s
Max. sound-pressure-level	50 dB
Version column	Form A
Dimension of column	Outer column 70 x 70 mm, Inner column 56 x 56 mm, Middle column 63 x 63 mm
Table leg version	Form T
Colour	Pure white RAL 9010
Operation	Button with arrows
Material	Steel / plastic
Surface	Epoxy coating
