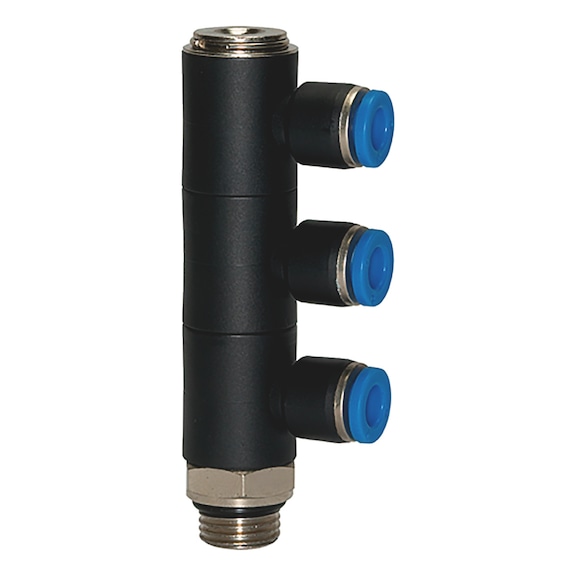

Three-way L-distributor
L-shaped distributor 3-way w hex. socket G thread
DSTR-3WAY-L-ROT-PLA-HS-ET-G1/8-PIP-6
Art.-no.
4981132118
EAN 4099618251634
Prices for customers after login
Exclusively for trade customers
Register now and access more than 125,000 products
Can be rotated 360°, with cylindrical thread and O-ring (NBR)
The three-way L-distributor is suitable for distributing air flows to different consumers, thus enabling efficient and economical control of your pneumatic system. The distributor can be used in conjunction with plastic hoses and pipes. Simple release and push-in behaviour for fast and safe installation. A wide range of applications and good durability and abrasion resistance thanks to the NBR sealing ring.
Product information
Datasheets(X)
Application area
- Compressed air systems
- Automation technology
- Automotive industry
- Packaging industry
 | |
Material | Plastic |
Material of gasket | Nitrile butadiene rubber (NBR) |
Material of screwing thread | Brass |
Surface of the screwing thread | Nickel plated |
Design | 360° rotatable |
Form | L |
Drive type | Hexagon socket |
Min./max. working pressure | -0.95-10 bar |
Min./max. operating temperature | -20 to 80 °C |
Thread type x nominal diameter (d1) | G1/8 |
Suitable for hose external diameter (Fs) | 6 |
Length (l1) | 59.1 mm |
Thread length (lg) | 5.5 mm |
Outer diameter (d2) | 14 mm |
Outer diameter 2 (d3) | 13 mm |
Length 2 (l2) | 21.5 mm |
Length 3 (l3) | 15.4 mm |
Width across flats (s1) | 14 mm |
Internal drive (s2) | HS4 |
