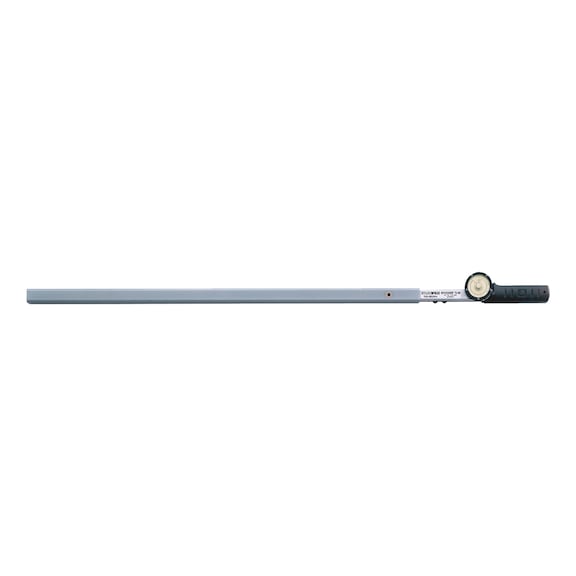

Torque wrench for plug-in torque wrench head Stahlwille MANOSKOP® 71/80
Torque wrench Stahlwille MANOSKOP 71/80
TRQWRNCH-STAHLWILE-50030080-(160-800NM)
Register now and access more than 125,000 products
- With indicator
- Mount for interchangeable add-on torque wrench heads
- With adapter for add-on heads no. 7370/80, all 14x18 mm plug-in torque wrench heads can also be used (max. 650 Nm)
- Trailing pointer
- Double scale: Nm/ft-lb
- Scale consisting of luminescent yellow special film to make the values easy to read even when visibility is poor
- Force compensator integrated in the handle
- Measuring element is a bending plate in the handle
- With overload protection
- Anti-clockwise tightening by turning the torque wrench around
- Calibration using perfectControl® calibrating unit no. 7794 or calibration system no. 7706
- Can be readjusted without dismantling
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Delivered in textile bag
- Display deviation value ± 4 %
Datasheets(X)
Insert shank square | 14 x 18 mm |
Suitable for right-hand tightening | Yes |
Suitable for left-hand tightening | Yes |
Tip size | 0 - not applicable |
Min./max. torque measuring range | 160-800 Nm |
Min./max. torque measuring range (inches) | 120-600 lbf.ft |
Length (L1) | 1048 mm |
