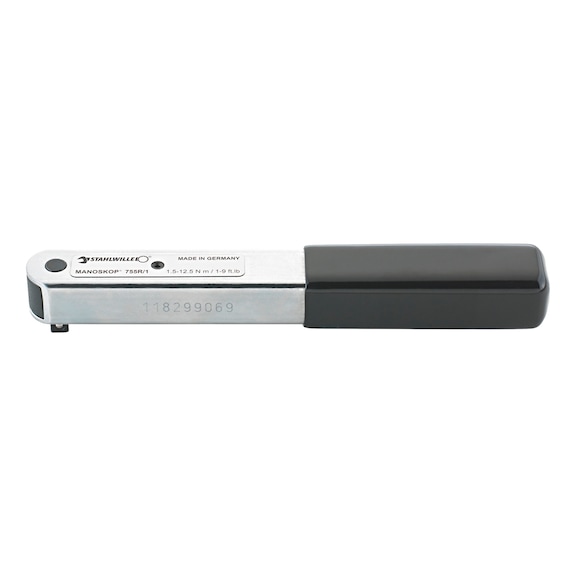

Torque wrench with 1/4 inch reversible ratchet Stahlwille MANOSKOP® 755R/1
Torque wrench reversible ratchet Stahlwille 755R/1
TRQWRENCH-STHLWIL-50100001-(1,5-12,5NM)
Register now and access more than 125,000 products
- For working on production lines or in series production. No adjustment scale; adjustment with test equipment required, e.g. with STAHLWILLE test device no. 7707 W, SmartCheck or calibration systems no. 7794, no. 7706.
- Independent of force application point
- Triggering
- Double stop signal
- Particularly lightweight and practical
- Handle and shank made of square steel tube
- Further load after triggering or impact against the direction of operation (up to the measuring range limit of the torque wrench) does not affect the trigger mechanism, thereby protecting it from damage
- Available with preset trigger value on request (10 % surcharge)
- Adjustment with torque wrench test device
- Display deviation value ± 4 %
Datasheets(X)
Tip size | 1/4 inch |
Min./max. torque measuring range | 1.5-12.5 Nm |
Min./max. torque measuring range (inches) | 1-9 lbf.ft |
Suitable for right-hand tightening | Yes |
Suitable for left-hand tightening | Yes |
Length (L1) | 173.5 mm |
Ratchet head height with square (B2) | 18 mm |
Ratchet head width (D2) | 22 mm |
