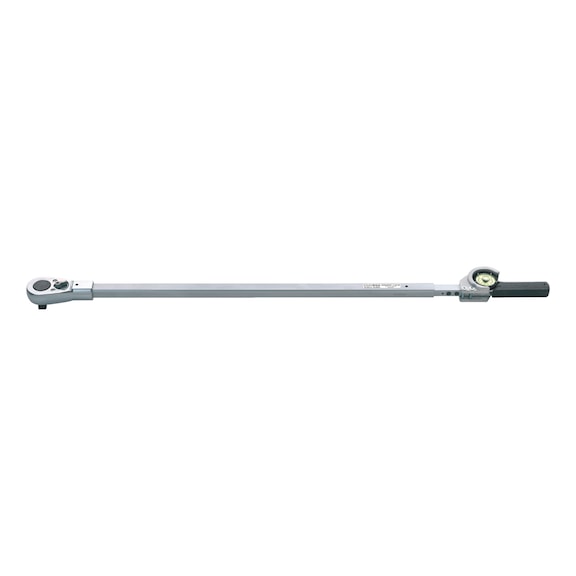

Torque wrench with 3/4 inch reversible ratchet Stahlwille MANOSKOP® 71AR/80
Torque wrench revers. ratchet Stahlwille 71AR/80
TRQWRENCH-STHLWILE-50450080-(160-800NM)
Register now and access more than 125,000 products
- With indicator
- Trailing pointer
- Double scale: Nm/ft-lb
- Scale consisting of luminescent yellow special film to make the values easy to read even when visibility is poor
- Additional protective ring to protect the dial gauge
- Force compensator integrated in the handle
- Not for anti-clockwise measurements
- Calibration using perfectControl calibrating unit no. 7794 or calibration system no. 7706. Can be readjusted as required without dismantling
- Comes with certificate
- Delivered in textile bag
- Display deviation value ± 4 %
Datasheets(X)
External drive | 0 - not applicable |
Tip size | 3/4 inch |
Min./max. torque measuring range | 160-800 Nm |
Min./max. torque measuring range (inches) | 100-600 lbf.ft |
Suitable for right-hand tightening | Yes |
Suitable for left-hand tightening | No |
Scale value torque | 10 Nm |
Length | 1152 mm |
