Travel package for system cabinet
System mobile conversion set
MOBPACK-CAB-12.6-RAL7016
Register now and access more than 125,000 products

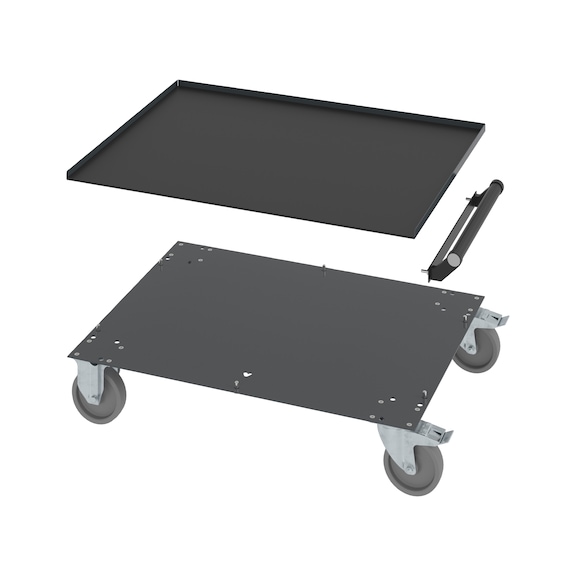

- The set includes the sheet steel panel, two swivel castors with locking brake, two fixed castors, one sliding handle and one anti-roll-off edging with soft foam mat.
- When ordered, the set is delivered ready-assembled in conjunction with a stationary cabinet.
- Retrofitting is possible at any time. Please observe the safety instructions for this
- Can be used with cabinet housings of the system factory equipment
Safety precaution: The expansion of a stationary cabinet or the subsequent conversion with the panel set is only possible to a limited extent. Watch out for risk of tipping, especially in high cabinets and cabinets with hinged doors. When moving, it must be ensured that the cabinet housing is locked and that all drawers and doors are closed. The maximum permissible cabinet height for retrofitting is 795 mm for system dimension 8.6 and 915 mm for system dimensions 12.6 and 16.6. The total load capacity of the travel package is 210 kg for system dimension 8.6 and 600 kg for system dimensions 12.6 and 16.6. Please note the dead load of the cabinet.
Datasheets(X)
System dimensions | 12.6 |
Colour | Anthracite grey RAL 7016 |
Height | 177 mm |
Design of the rolls | 2 swivel castors with brake (D: 125 mm), 2 fixed castors without brake (D: 125 mm) |
Max. load capacity | 400 kg |
Width | 805 mm |
Depth | 603 mm |
