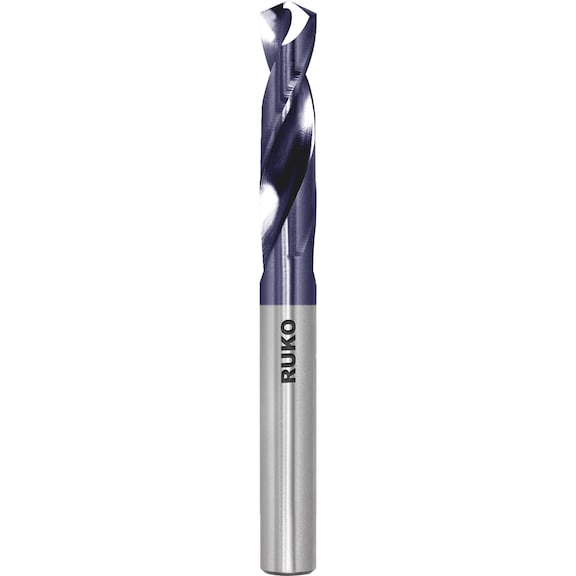

Twist drill bit, metal Ruko DIN1897 HSCo TiAlN
Twist drill bit HSCo TiAlN DIN1897 Ruko
DRL-SPRL-RUKO202045EF-DIN1897-TIALN-4,5
Register now and access more than 125,000 products
Ideal for assembly work in thin-walled materials such as sheet metal, flat iron and profile iron in bodywork manufacturing. Use in hand drills, on machines and turrets.
Datasheets(X)
Standard / drilling depth | DIN 1897 / 3xD |
Diameter (Ø) | 4.5 mm |
Length (l1) | 58 mm |
Chip flute length (l2) | 24.0 mm |
Shank style | Cylindrical |
Surface | TiAlN |
Cutting material | HSSE Co5 |
