Universal connector, furniture construction

Name: Universal connector, furniture construction
Brand: Würth
SKU: 0683235304

Universal connector
UNICON-FRNCNST-80MM-ANCHORSCREW-WOOD-KIT

Art.-no. 0683235304

EAN 4056807577869

All versions

Prices for customers after login

Universal connector, furniture construction

Art.-no. 0683235304

Prices for customers after login

Quantity

Exclusively for trade customers

Login/Register
Call customer service:

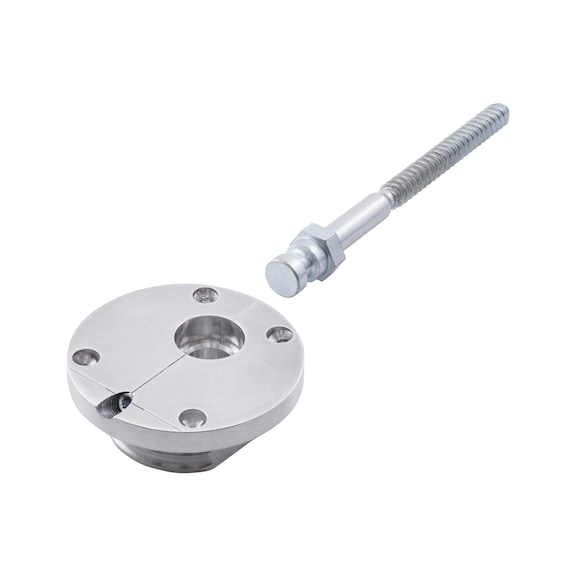

Invisible heavy-duty connector can be used universally

For a broad range of applications

Concealed installation option

Connection is removable at any time

Allows flush mounting

Connector ∅ 40–60 mm with anchor bolt 10 x 140 mm, width across flats 17

Connector ∅ 70–80 mm with anchor bolt 12 x 140 mm, width across flats 19

Easy, quick and reliable assembly

With fixing screw screwed in at an angle, extremely high tensile force is applied to the head of the anchor screw (zinc-plated steel with hardened anchor head) and consequently the counterpart firmly pressed against.

Notice

As a guideline, the following test was carried out:

The universal connector was used as a shelf support: Connector with ∅ 40 mm and an anchor screw for wood 10 x 140 mm

The holder was installed in a 28 mm chipboard wall and the anchor screw screwed in a 50 mm thick and 400 mm deep chipboard shelf.

The max. load capacity is max. 15 kg with even weight distribution across the entire shelf depth and length 1000 mm. Axis distance of the anchor screw 700 mm.

As there are large variations in the strength of the materials to be used, we recommend a self-test.

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Table and bench foot attachment, shelf support, stud connector, stake rack connector


Material	Aluminium
Surface	Plain
Diameter	80 mm
Height	30 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Milling jig

MILJIG-F.UNIVERSALCONNECTOR-40MM

Art.-no. 0683235312

Special milling jig for the universal connector allows easy, quick and efficient installation of the holder

x 1 pcs
