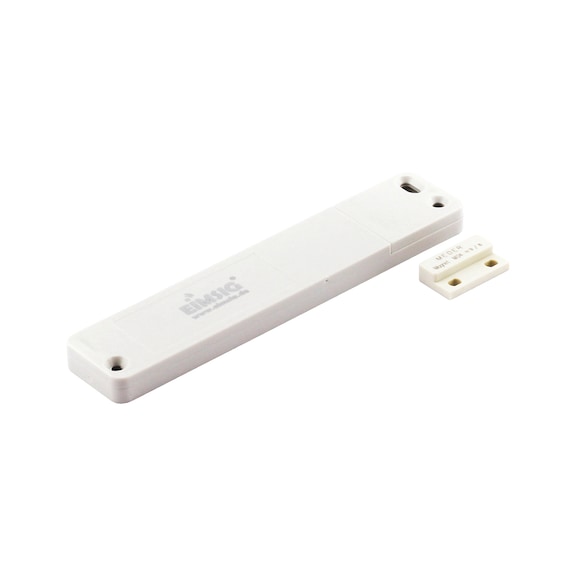

Universal sensor W-FS For the W-FS electronic window monitoring system - UNISENSO-EL-(W-FS-OG)

Universal sensor W-FS For the W-FS electronic window monitoring system

Universal sensor W-FS OG
UNISENSO-EL-(W-FS-OG)

Art.-no. 0688908010
EAN 4056807805078
All versions

Prices for customers after login
Universal sensor W-FS For the W-FS electronic window monitoring system

Art.-no. 0688908010

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

  • Monitoring of window/door states: OPEN/CLOSED

  • Concealed fitting in window or door frame

  • Simple, trouble-free assembly and installation (teach-in)

  • Ideal for older buildings and new builds

  • Can be retrofitted easily

  • Encrypted transmission for maximum security

  • VdS recognised
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Ideal for lifting/sliding doors, garage doors, etc.

Material

Plastic

Colour

Light grey

Length

129 mm

Width

26.5 mm

Height

9.5 mm

Installation length

129 mm

Installation width

27 mm

Installation height

9.5 mm

Operating voltage

3 V

Min./max. relative air humidity

20-90 %

Min. operating temperature

-20 °C

Max. operating temperature

60 °C

Type of rechargeable battery/battery

Lithium

Number of rechargeable batteries/batteries

2 PCS

Radio frequency

868.3 MHz

Max. range in the building

30 m

Max. range in the open area

100 m

Current consumption

20 mA

Standby current consumption

5 µA

Min. relative air humidity

20 %

Max. relative air humidity

90 %

With integrated antenna

Yes

IP protection class

0 - not applicable
