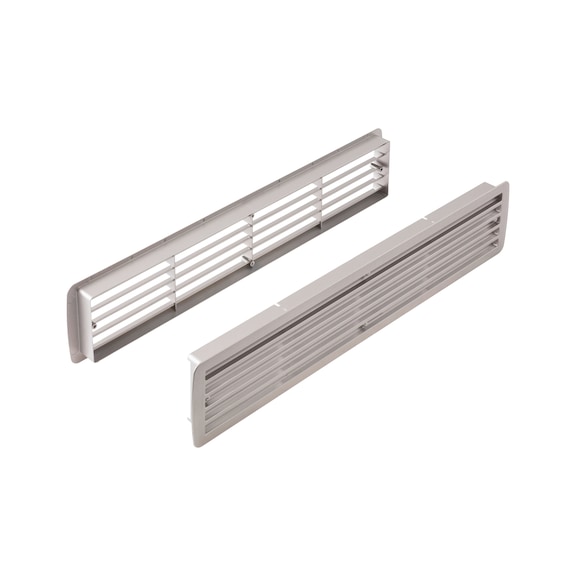

Ventilation grille for room doors type A - VENTGRIL-INDR-(TYPE A)-(A2-OPTIC)

Ventilation grille for room doors type A - VENTGRIL-INDR-(TYPE A)-(A2-OPTIC) - 1

Ventilation grille for room doors type A - VENTGRIL-INDR-(TYPE A)-(A2-OPTIC) - 2

Ventilation grille for room doors type A

Name: Ventilation grille for room doors type A
Brand: Würth
SKU: 0688191220

Ventilation grille for room doors type A
VENTGRIL-INDR-(TYPE A)-(A2-OPTIC)

Art.-no. 0688191220

EAN 4056807787466

All versions

Prices for customers after login

Ventilation grille for room doors type A

Art.-no. 0688191220

Prices for customers after login

Quantity

x 30 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Double-sided ventilation grille with an air passage of 200 cm²

For ventilation or airing via door openings

The ventilation grille is suitable for mounting on door panels to provide air circulation between rooms.

The ventilation grille consists of two parts

that are inserted into each other and screwed together

Notice

The colours of the ventilation grilles may differ from the original wood hue or wood finish.

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Area of application	Private area, Object area
Suitable for	Interior doors, Toilet and bathroom doors, Building doors, Office doors
Material	PS - Polystyrene
Colour	Stainless steel coloured
Air vent	200 cm²
Suitable for min./max. door thickness	35-43 mm
Length	457 mm
Width	92 mm
Material thickness	2 mm
Cut-out length	433 mm
Cut-out width	77 mm
Number of mounting points	4-point
Type of assembly	Continuous fastening
Standards	DIN 18017-3
Included in delivery	1 x ventilation grille exterior part, 1 x ventilation grille interior part, 4 x fastening screws pan head 3 x 40
