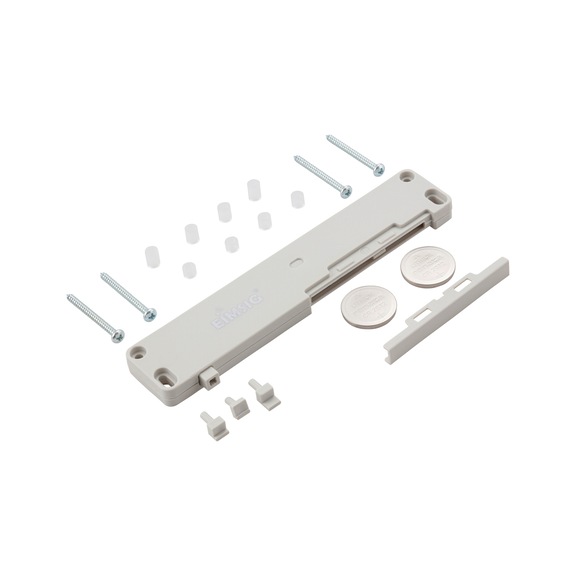

W-FS OGK-G-EnOcean window sensor For the W-FS electronic window monitoring system

Window sensor W-FS OGK-G-EnOcean
WNDWSENSO-EL-W-FS OGK-G ENOCEAN

Art.-no. 0688908013
EAN 4062856010264

Prices for customers after login
W-FS OGK-G-EnOcean window sensor For the W-FS electronic window monitoring system

Art.-no. 0688908013

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

For the W-FS electronic window monitoring system
  • Monitoring of the window/door status OPEN/CLOSED/TILTED

  • Additional monitoring of the glass surface for GLASS BREAKAGE

  • Hidden installation in the window or door frame

  • Simple, trouble-free assembly and installation (teach-in)

  • Ideal for old and new buildings

  • Easily retrofitted

  • Low battery consumption due to EnOcean radio sensors and economical radio technology

  • Encrypted transmission for maximum security
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For protecting windows and doors.

Instructions

To be installed in the window or door frame.

Material

Plastic

Colour

Grey

Length

135 mm

Width

26 mm

Height

9 mm

Installation length

135 mm

Installation width

26 mm

Installation height

9 mm

Operating voltage

3 V

Min./max. relative air humidity

20-90 %

Min. operating temperature

-20 °C

Max. operating temperature

60 °C

Type of rechargeable battery/battery

Li-lon

Number of rechargeable batteries/batteries

2 PCS

Radio frequency

868.3 MHz

Max. range in the building

15 m

Max. range in the open area

30 m

Current consumption

20 mA

Standby current consumption

4 µA

Min. relative air humidity

20 %

Max. relative air humidity

90 %

With integrated antenna

Yes

IP protection class

0 - not applicable
